Tecsun - PL-320

Product code: 5000325
Factory code: 5000325
Barcode: 6920487513203

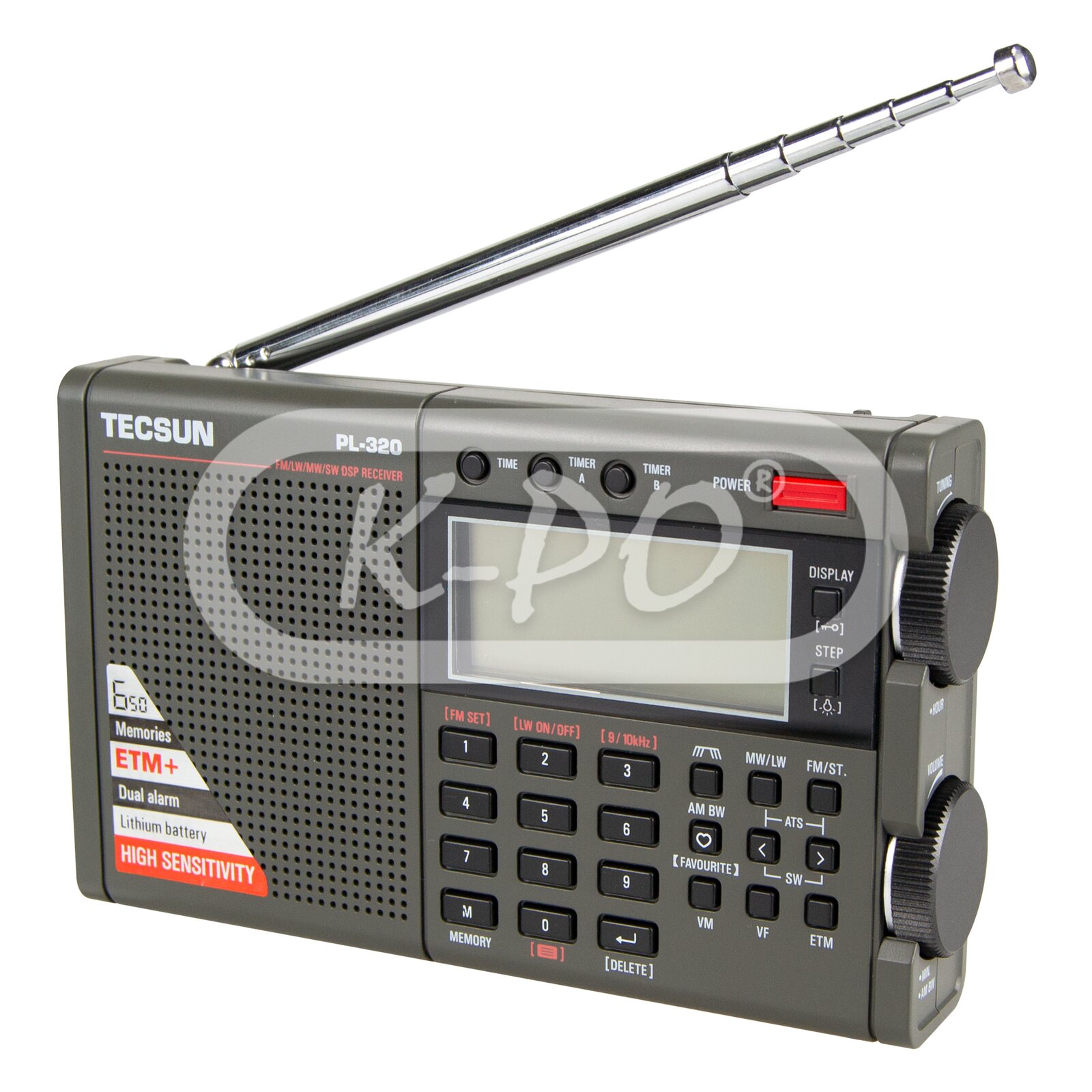

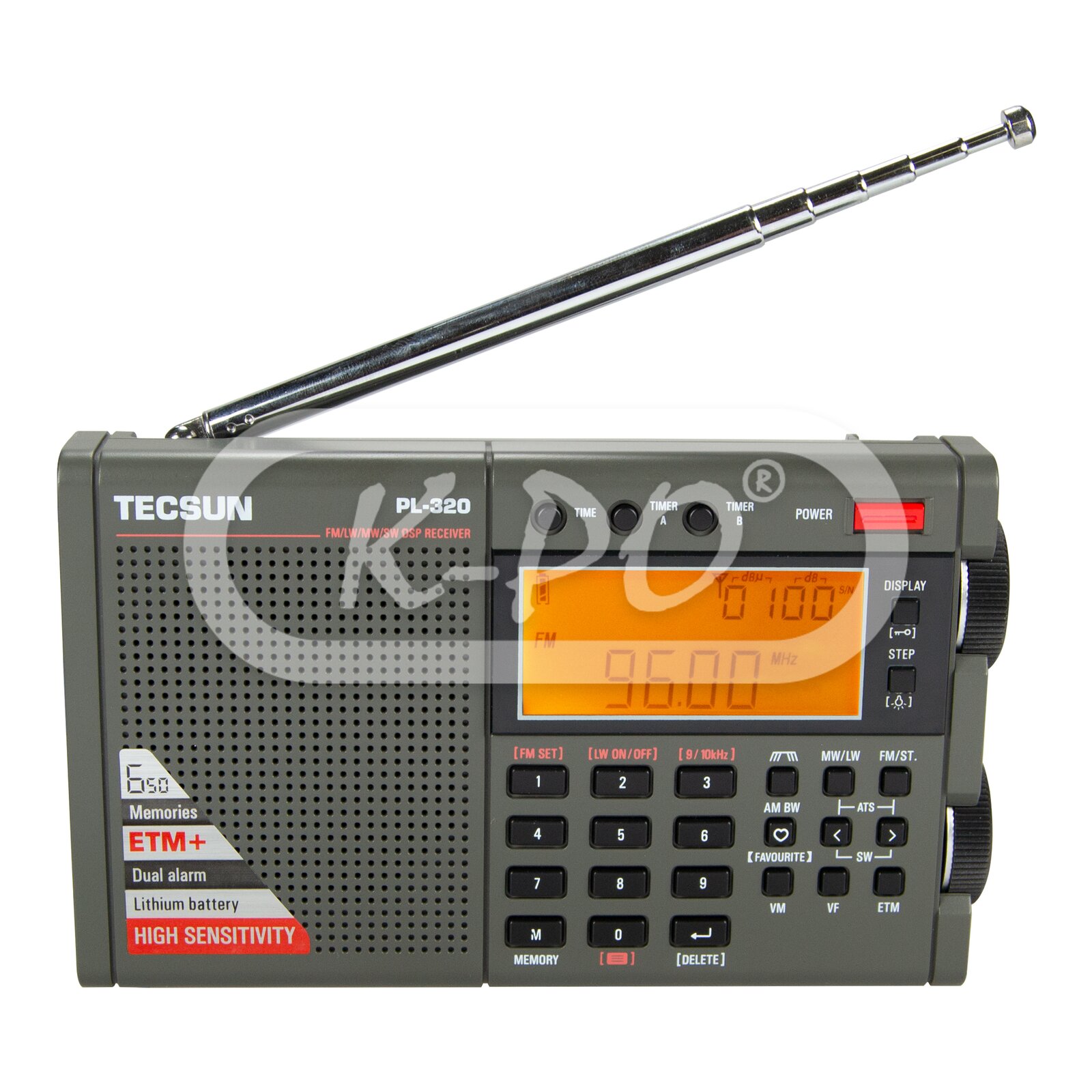

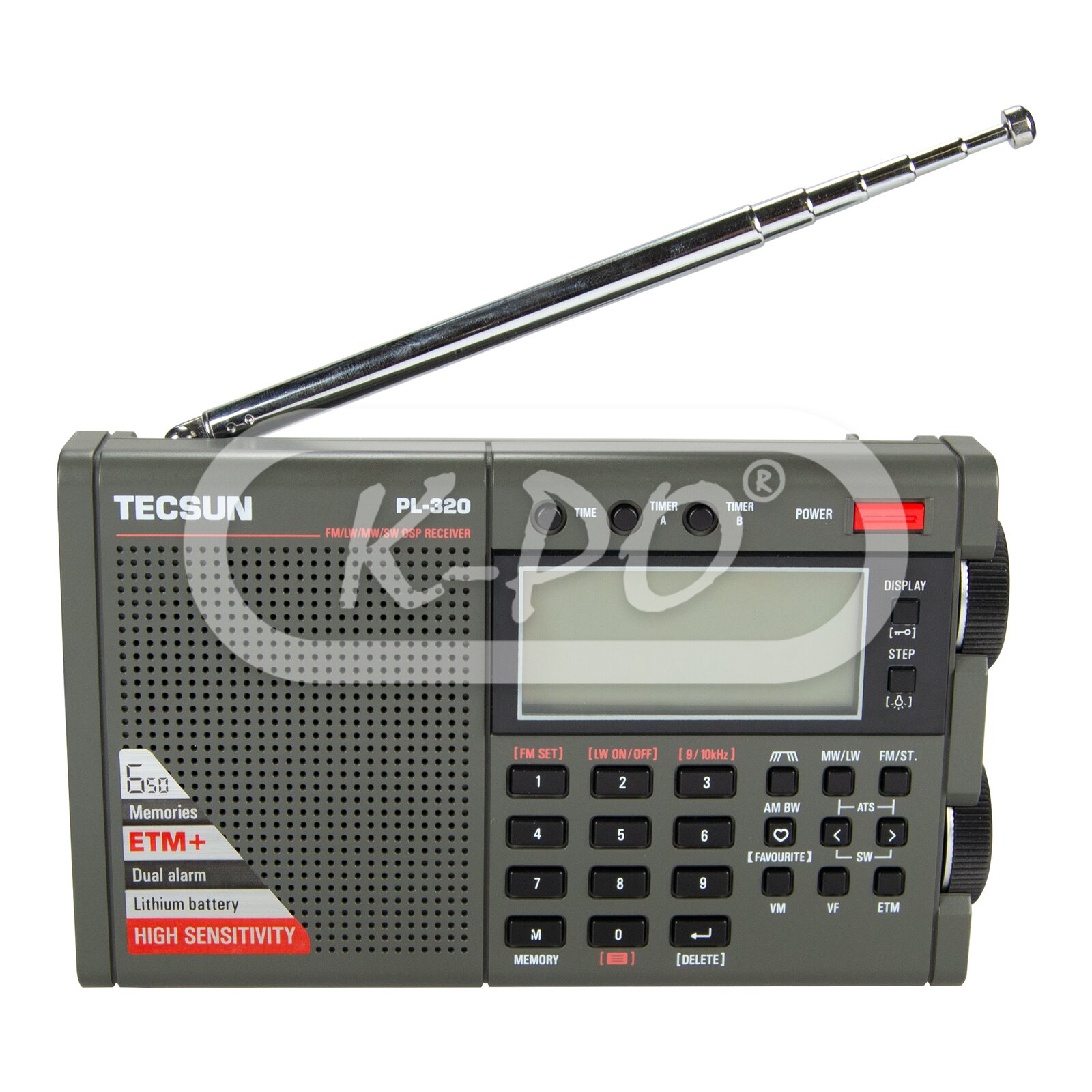

The Tecsun PL-320 is Tecsun' new pocket radio and can be compared with the PL-330 SSB. Main difference is that the PL-320 is without SSB, but comes with a 5 kHz step on AM which is lacking on the PL-330. The PL-320 comes with an USB-C charging connector which is nowadays very common with new electronics.

Fitted with modern DSP digital demodulation technology which greatly enhances reception sensitivity, selectivity, signal-to-noise radio and interference performance.

Frequency range: FM : 64 - 108 MHz / 76 - 108 MHz / 87 - 108 MHz / 88 - 108 MHz, LW: 153 - 513 kHz, MW: 520 - 1710 kHz (10 kHz) / 522 - 1620 kHz (9 kHz), SW: 1711 - 29999 kHz
Shipped today
€74.95 (61.94 excl. 21% VAT)

Features

  • 9/10 KHz step MW: Yes
  • Signal indicator: Yes
  • Scan function: Yes
  • Manual tuning: Yes
  • Auto tuning storage (ATS): Yes
  • Clock function: Yes
  • Alarm function: Yes
  • Snooze function: Yes
  • Battery indicator: Yes
  • Temperarture meter: Yes
  • Sleep timer: Yes
  • LCD backlight: Yes
  • Earphone socket 3.5 mm: Yes
  • External antenna socket: Yes
  • Keylock function: Yes
  • Memory channels: LW / FM: 100 for each | MW: 150 | SW: 300
  • Telescopic antenna: Yes
  • Power source: Battery pack (included)
  • USB-C socket: Yes
  • Volume: Yes
  • Enhanced Tuning Mode (ETM+): Yes
  • Favorite station: Yes

    Elektrical data

  • IF frequency: AM: 45 kHz / FM 128 kHz
  • FM stereo crosstalk (headphone output): 35 dB
  • Speaker: 8 Ohm / 0.25 Watt
  • Stereo headphone impedance: 32 - 150 Ohm
  • Maximum output power: ± 200 mW
  • Quiescent current: FM/MW/LW: <25 mA / SW: <45 mA
  • Standby current: < 90 uA

    Frequency range

  • FM: 64 - 108 MHz / 76 - 108 MHz / 87 - 108 MHz / 88 - 108 MHz
  • MW: 520 - 1710 kHz (10 kHz) / 522 - 1620 kHz (9 kHz)
  • LW: 153 - 513 kHz
  • SW: 1711 - 29999 kHz

    Frequency steps

  • FM: 100 kHz / 10 kHz
  • MW (520-1710 kHz): 10 kHz / 1 kHz
  • MW (522-1620 kHz): 9 kHz / 1 kHz
  • SW: 5 kHz / 1 kHz
  • LW: 9 kHz / 1 kHz

    Noise limit sensitivity

  • FM (S/N = 26 dB): < 3 µV
  • LW (S/N = 26 dB): < 10 mV/m
  • MW (S/N = 26 dB): < 1 mV/m
  • SW (S/N = 26 dB): < 20 µV

    Selectivity

  • FM: > 60 dB
  • MW: > 60 dB
  • LW: > 60 dB
  • SW: > 60 dB

Mechanical data

  • Length: 26 mm
  • Height: 85 mm
  • Width: 139 mm
  • Weight: 210 gram
  • Color: Grey

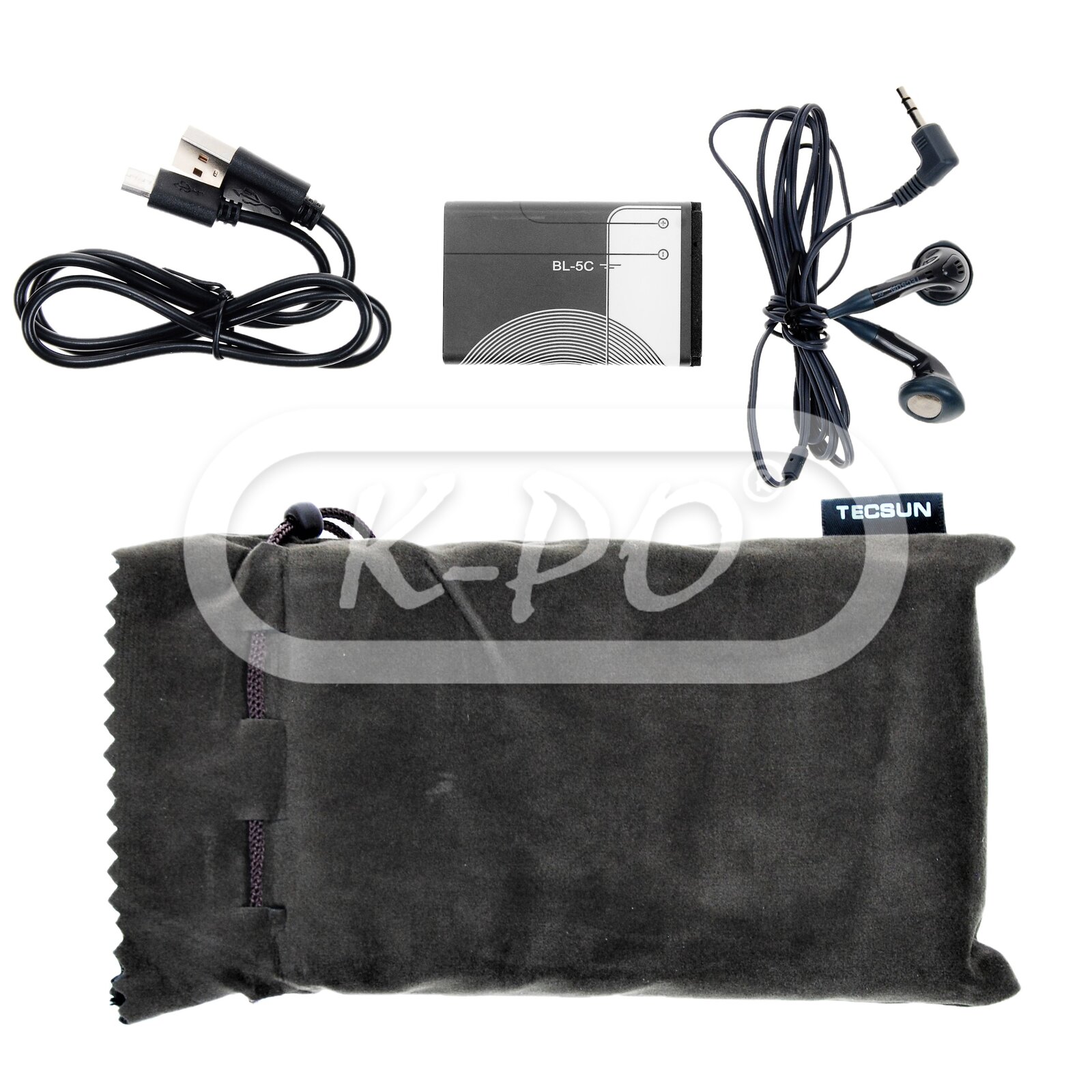

Inside the box

  • Receiver: Yes
  • USB-C charger: Yes
  • Carry bag: Yes
  • Battery pack: Yes, 1000 mAh BL-5C li-ion battery pack
  • Earbuds: Yes
  • Keycord: Yes
  • User manual: English
