TTI - TCB-H100E

Product code: 48100

Barcode: 8809075192311

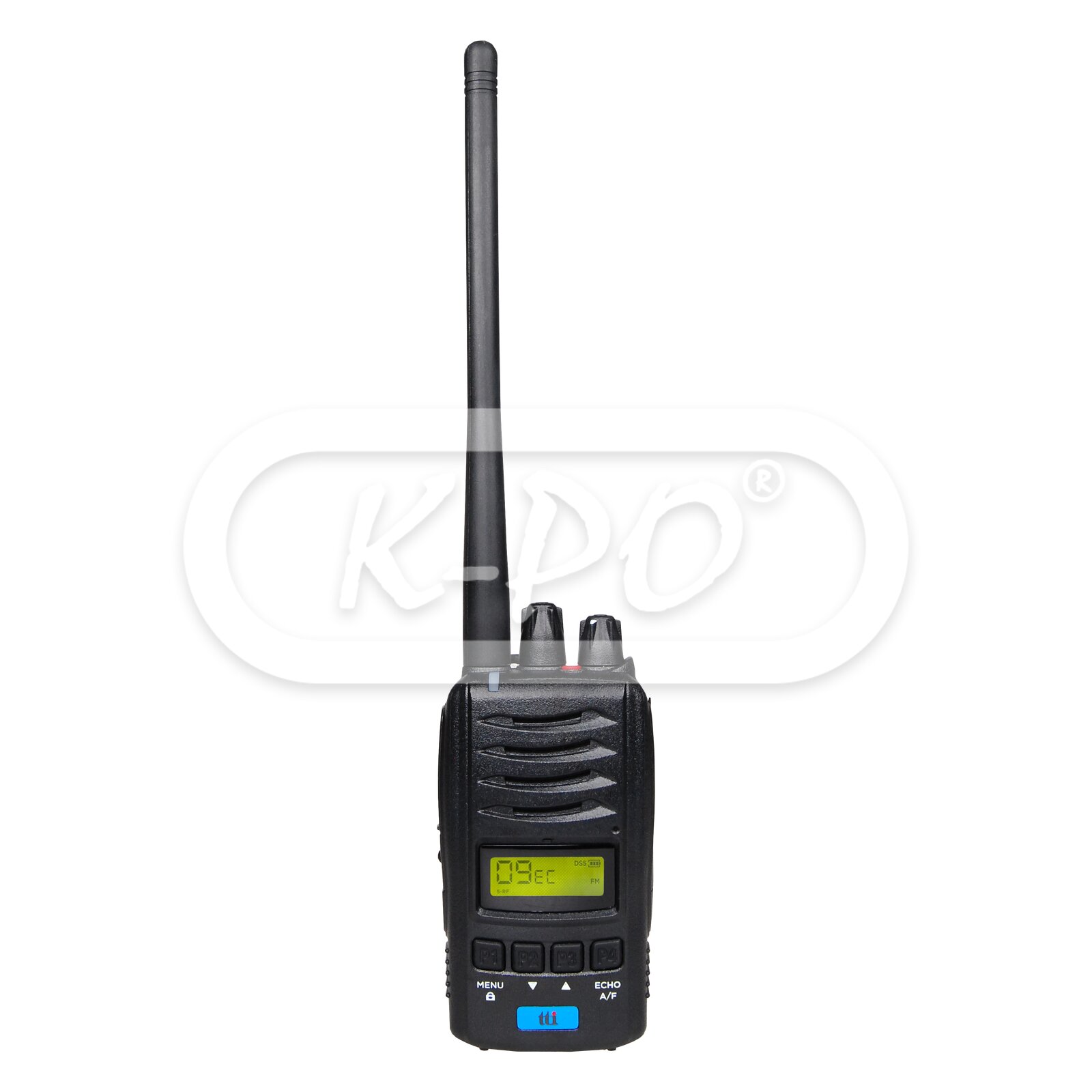

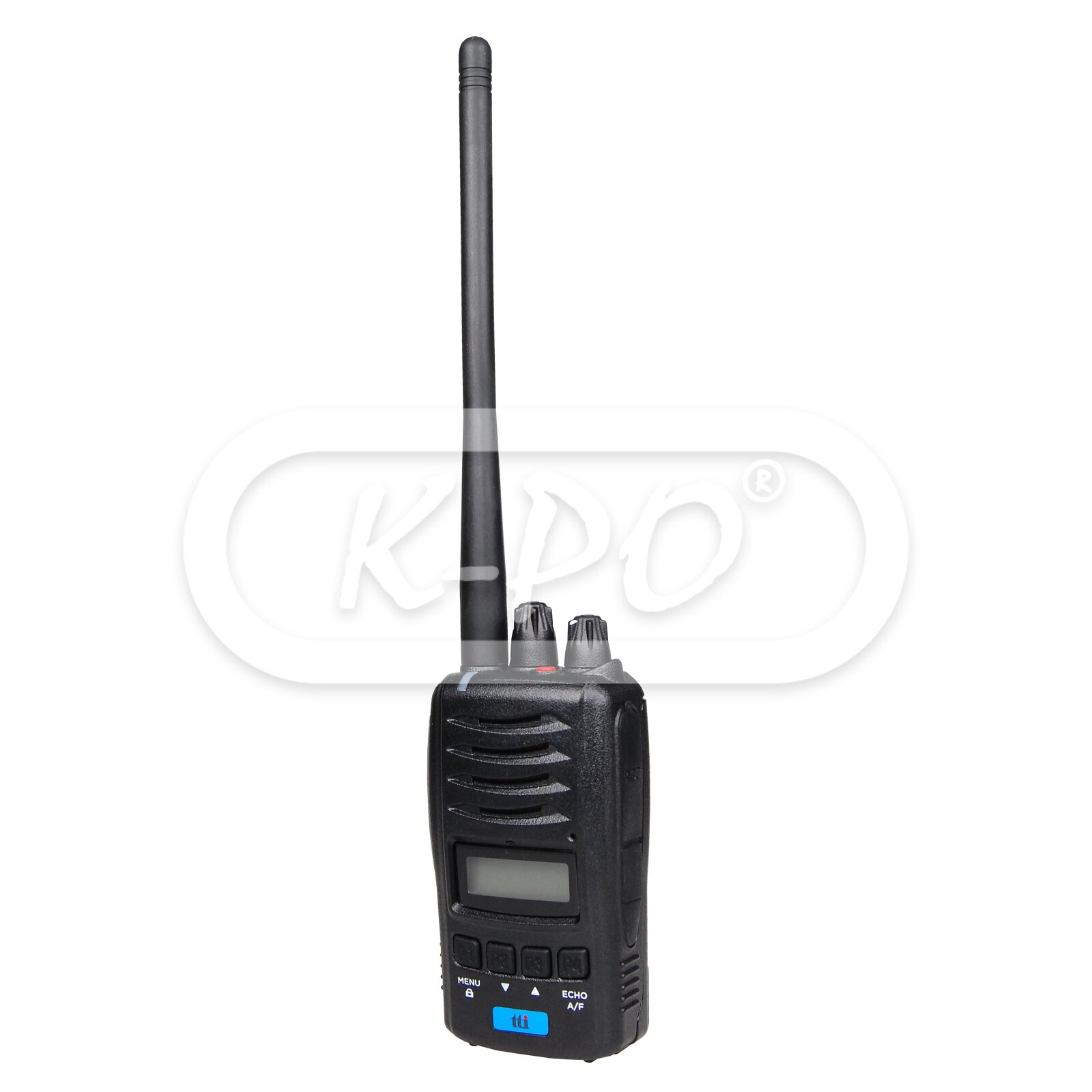

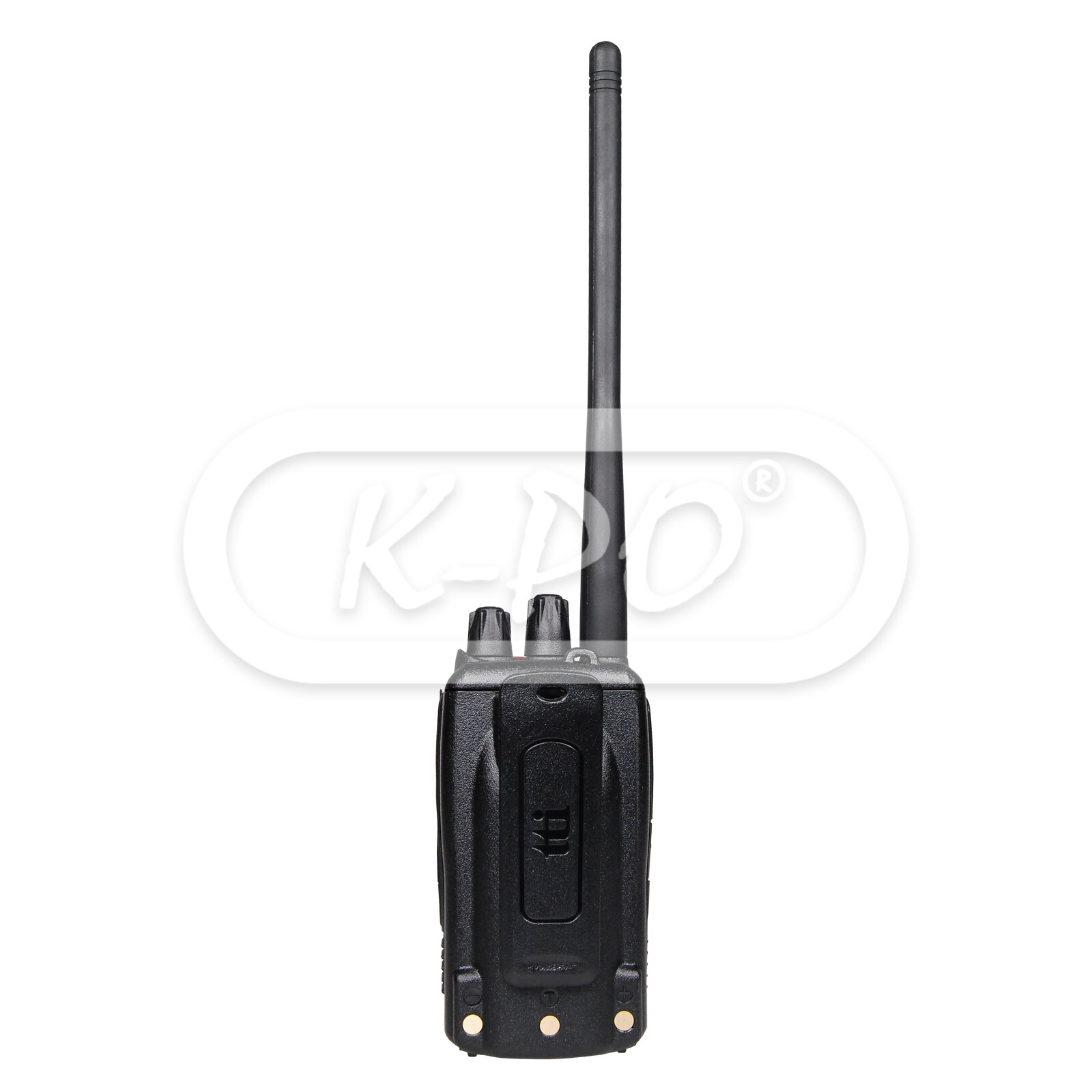

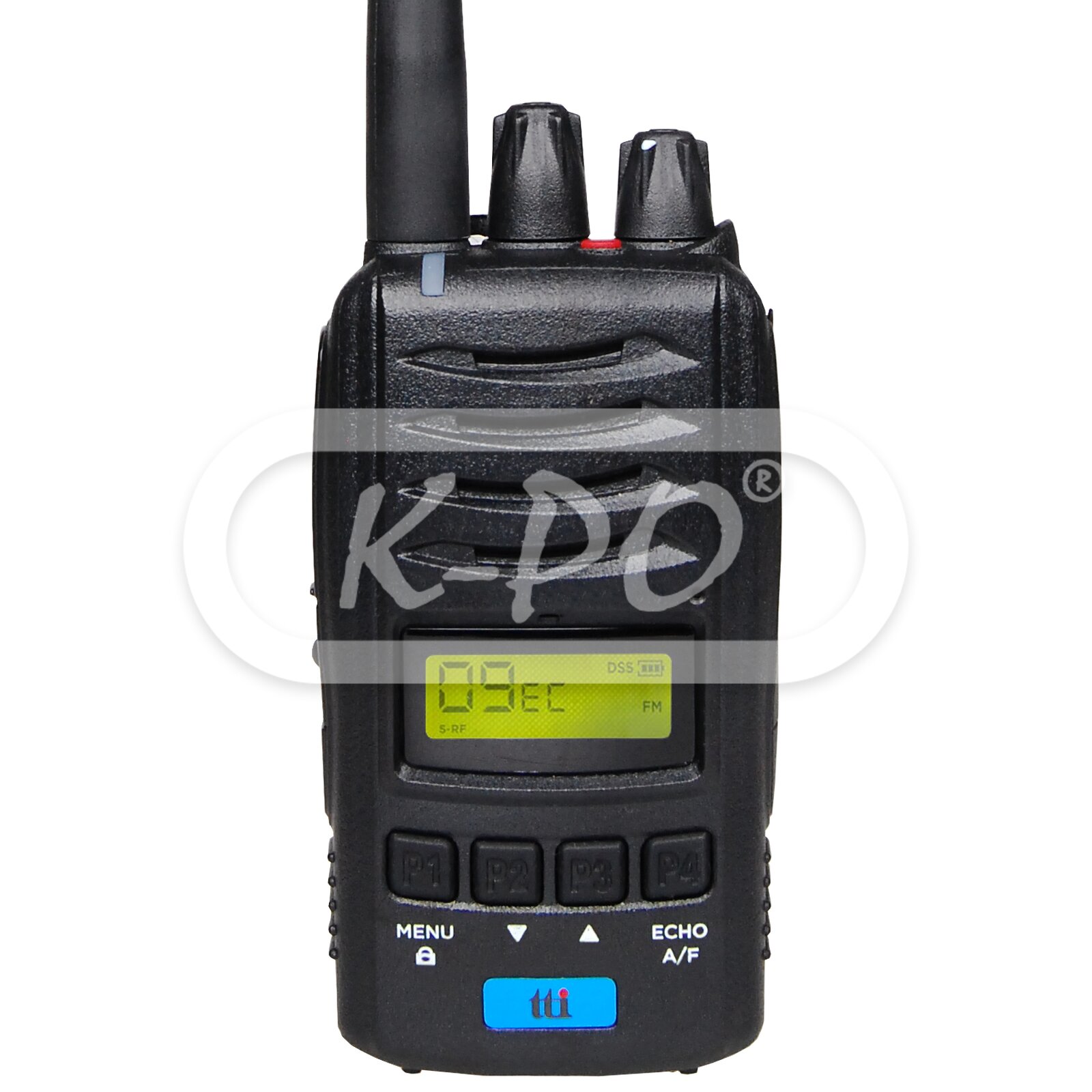

The TTI TCB-H100E is the new compact handheld CB radio from TTI with ECHO function, VOX function, 3 display colors, 2600 mAh battery pack and many more functions. Optional are a 12/24 volt car charger and a 12/24 volt battery eliminator with external antenna connector.

Frequency range: 26.965 - 27.405 MHz

Shipped next business day

€119.95 (99.13 excl. 21% VAT)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt / Duty cycle 10% @ 13.2V DC
• Channels: 40 AM / FM
• Display type: Multi-color backlight

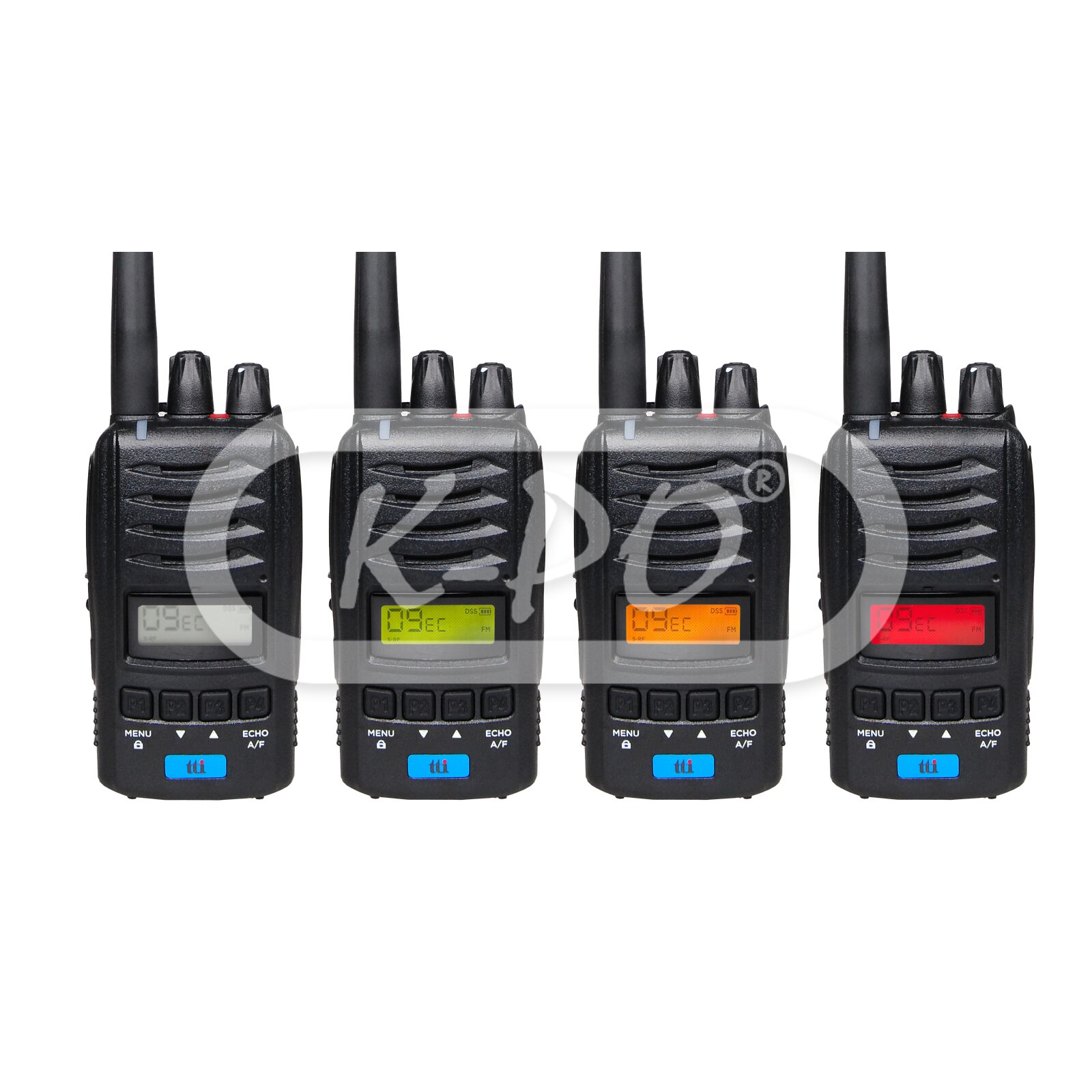

• Display colors: Green / Orange / Red
• VOX Function: Yes
• Squelch: DSS (Dynamic Squelch System) / Manual squelch /
• Emergency channel: Yes
• Keypad lock: Yes
• Hi/Lo power: Yes
• Scan function: Yes
• External speaker socket: Yes
• S-meter: Yes
• Battery capacity: Li-ion 2600 mAh
• Echo: Yes
• Roger Beep: Yes

Electrical data

• Voltage: 7,4 Volt
• Operating temperature: -10° to +55° C
• Operating mode: F3E (FM) / A3E (AM)
• Frequency control: PLL synthesizer
• Frequency tolerance: 0.002 %

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Modulation AM: from 85% to 95%
• Modulation FM: 1.8 kHz to ± 0.2 kHz
• Harmonic suppression: Less than-54 dBm
• Drain: AM full Mod. 1.6 A Max.

Receiver

• AM sensitivity: 1.4 µV for 10 dB
• FM sensitivity: 0.8 µV for 20 dB SINAD
• Frequency response: 300 Hz - 3 kHz
• Maximum audio power: 1 Watt @ 16 Ohm
• Internal speaker: 16 Ohm, round
• Receiving system: Dual conversion superheterodyne
• IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
• Audio distortion: Less than 8% @ 1 kHz
• Image rejection: More than 60 dB
• Squelch: Adjustable, threshold less than 1 µV, DSS less than 2 µV

Mechanical data

• Length: 57 mm
• Height: 116 mm
• Width: 39 mm
• Weight: 224 gram
• Antenna connector: SMA
• Accessory connector: 2 pin Standard Icom (S)

Inside the box

• Transceiver: 1 pcs
• User Manual: English
• Antenna: Yes
• Battery pack: Yes, 2600 mAh
• Belt clip: Yes

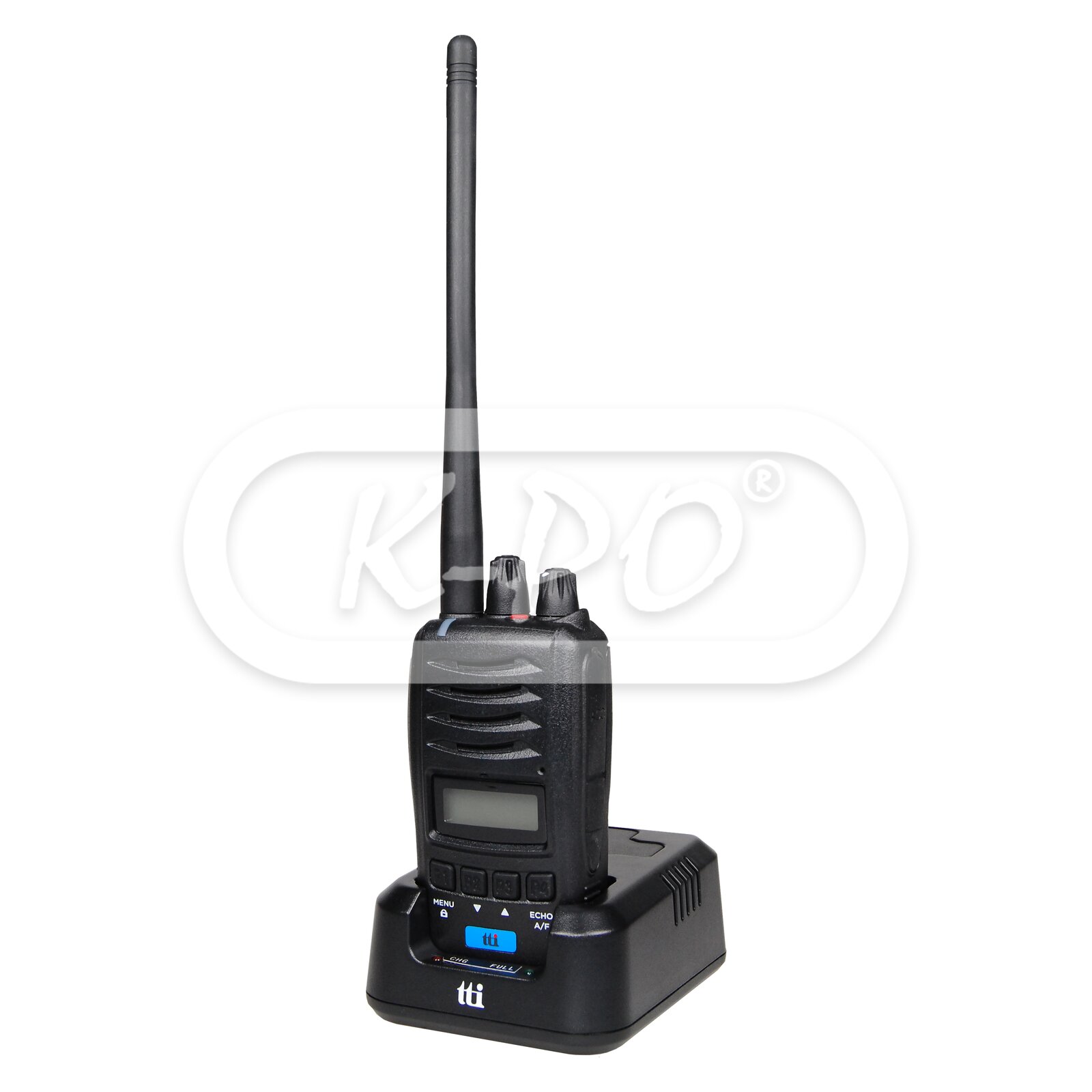

• Desktop charger: Yes
• AC (EU) wall charger: Yes

Downloads

• Datasheet: 820 TCH0 000 TCB H100 Manual Eng 20191212
