Vero - VR-P25D VHF

Product code: 40146

The Vero VR-P25D VHF amplifier is a portable, lightweight, wide coverage RF power amplifier for handheld radio equipment and are equally capable of amplifying both analog and digital signals.

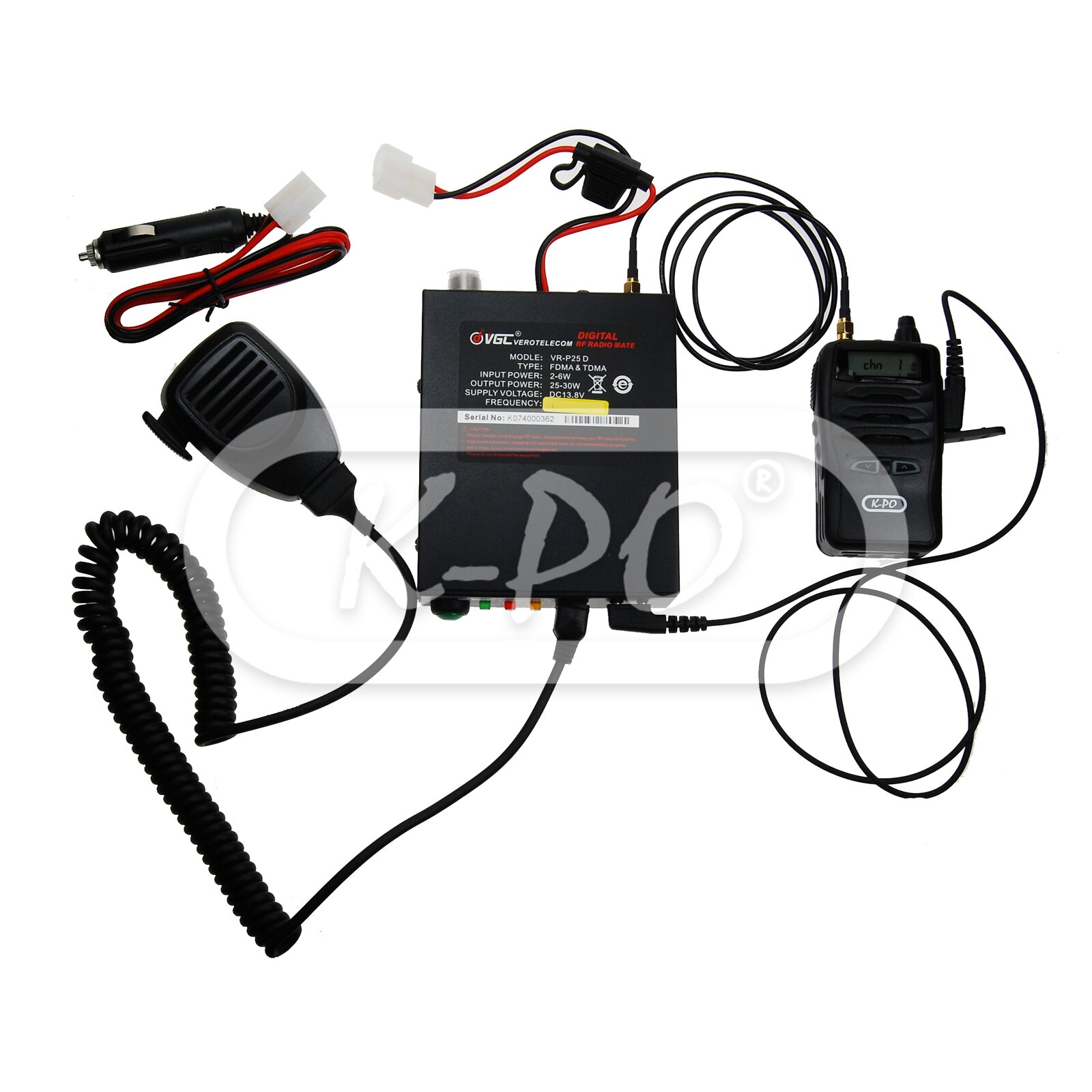

Use the amplifier to create a mobile device with a vehicle-mounted antenna, a powerful field radio with a field-installed antenna or a base station with an antenna on a mast. Your handheld radio connects and disconnects in seconds.

The Vero VR-P25D VHF is designed to work with any analog and digital handheld transceivers. With an input power of 2-6 Watts, up to 30 Watts of output power can be achieved.

FM analog and digital DMR (Tier I & II), D-STAR, C4FM, P25, NXDN and dPMR. TDMA compatible (2 Time Slot) and FDMA.Can be used in 3 ways: radio controlled, accessory controlled or amplifier controlled.

Frequency range: 136-174 MHz
Shipped next business day - Stock: 5
€149.94 (123.92 excl. 21% VAT)

Electrical data

  • Input power (Watts): 2-6 (±10%)
  • Max output power (Watts): 25-30
  • Input power/energy: 5.5 A
  • Protection: Voltage spike suppression, over-temperature protection, RF sensing, APC (automatic power control)
  • Auto power off: Yes
  • Voltage stabilizer: Yes

Mechanical data

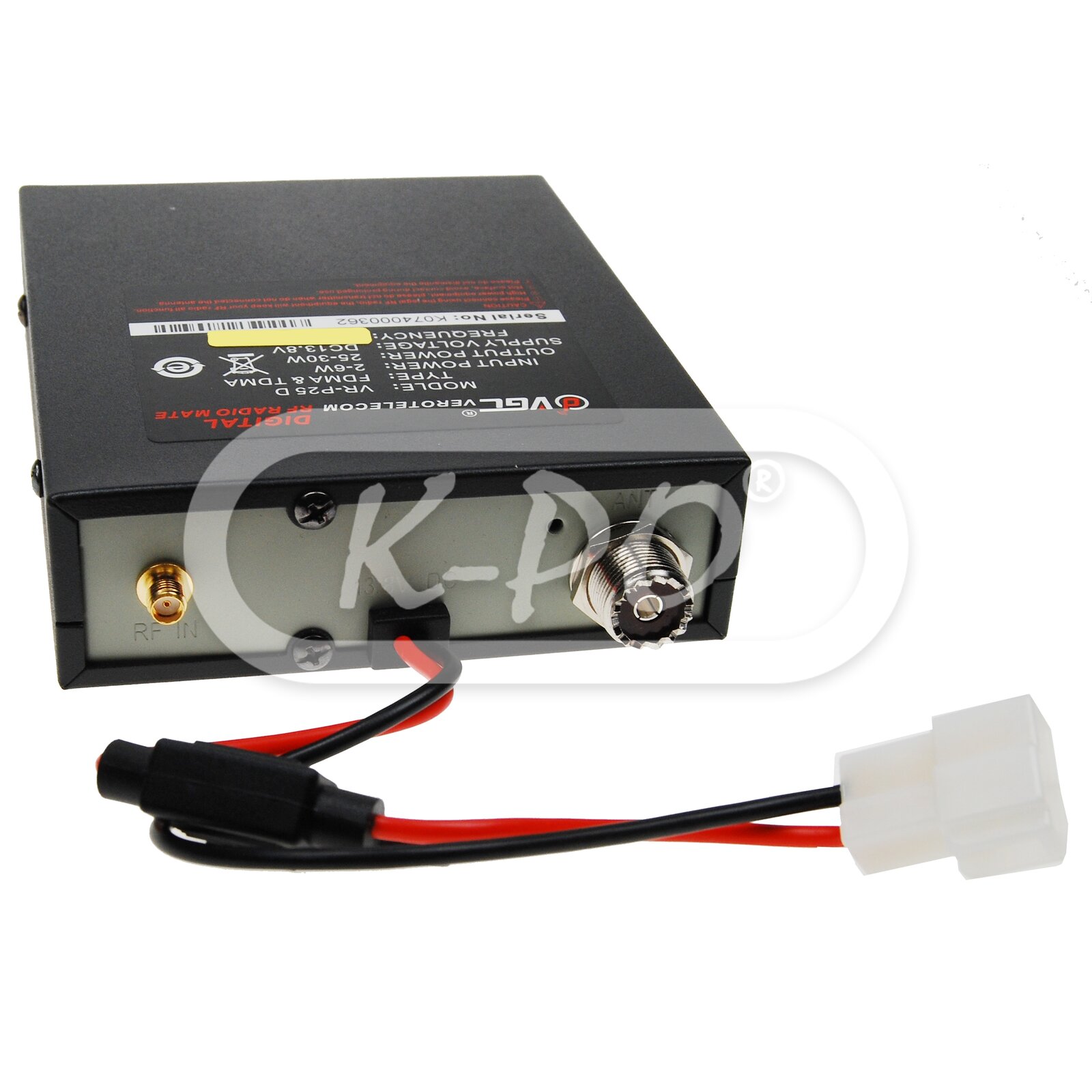

  • Input connector: SMA female
  • Output connector: UHF (PL) female
  • Length: 135 mm
  • Height: 36 mm
  • Width: 115 mm
  • Weight: 680 gram

Inside the box

  • Amplifier: Yes
  • DC power cord: Yes
  • Installation manual: English
