Wouxun - KG-818 4M

Product code: 34782

Barcode: 6946351703358

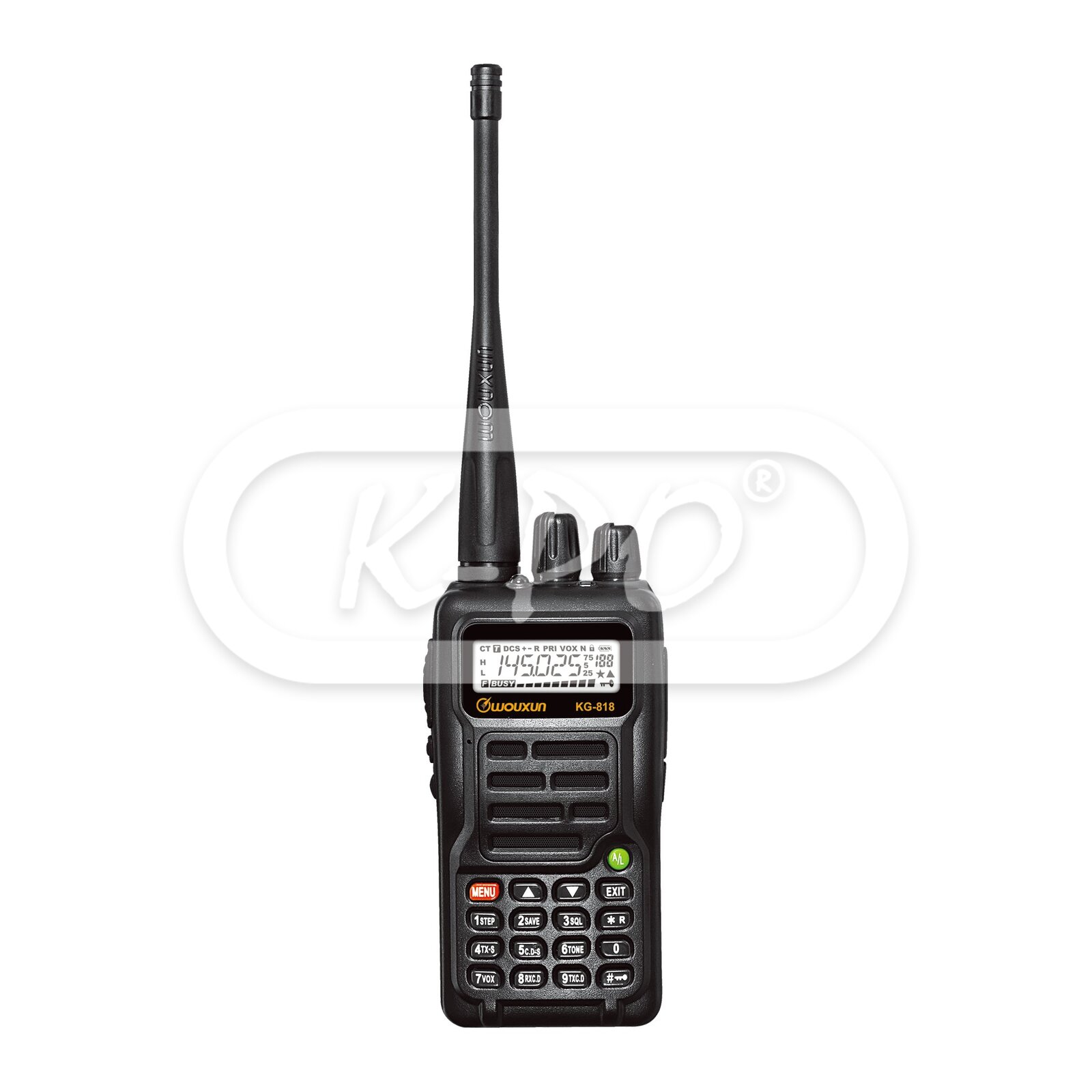

The Wouxun KG-818 4M is a transceiver suitable for 66-88 MHz. The KG-818 4M will be delivered with a 1700 mAh Li-Ion battery pack.

Frequency range: TX/RX: 66-88 MHz

Out of stock - Longer delivery time

€99.95 (82.6 excl. 21% VAT)

Features

• Display: Yes, LCD
• VOX function: Yes
• Emergency (SOS) function: Yes
• Flashlight: Yes
• Priority channel scan: Yes
• High/low power selection: Yes
• Voice guide: English and Chinese
• Reverse frequency: Yes
• Calls: Yes, group and selective calls
• Burst tone: Yes, at 1750Hz
• DCS codes: 105 groups
• CTCSS codes: 50 groups
• FM Radio: Yes
• Wire clone function: Yes
• Program: Yes, by computer
• TOT (time-out timer): Yes
• Multi scan mode: Yes, TO / CO / SE

Electrical data

• Frequency step: 2.5 kHz / 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 25 kHz / 50 kHz / 100 kHz /
• Channels: 16
• Wide and narrow bandwidth selection: Yes
• Operating temperature: -30℃ to +60℃

Transmitter

• Power output (Watts): VHF: 5/1 Watts / UHF: 4/1 Watts
• Modulation limit: F3E(FM)
• Frequency stability: ±2.5 PPM
• Effective radiation power (ERP):
• Max. frequency deviation: ≤±5 KHz
• Audio modulation:
• Adjacent channel power:
• Spurious radiation: ≤-60 dB
• Inter modulation attenuation:
• Modulation distortion:
• Residual FM:
• Residual AM:

Receiver

• Audio distortion: ≤5%
• Audio power output: ≤500 mW
• Sensitivity (12dB SINAD): ≤0.2µV
• Squelch rejection sensitivity:
• Squelch sensitivity:
• Audio response:
• Co-channel rejection:
• Performance of amplitude limiter:
• Adjacent channel selection:
• Inter modulation:
• Resistance:
• Spurious radiation: ≤-60dB

Mechanical data

• Length: 57 mm
• Height: 102 mm
• Width: 33 mm
• Weight: 250 gram
• Antenna connector: SMA male

Inside the box

• Transceiver: Yes
• Battery: Li-Ion 1700 mAh
• Charger: Desk charger with adapter and 12 V car charger
• Antenna: Yes
• Installation manual: English
• Belt clip: Yes
• Hand strap: Yes
