Yaesu - FT-3165E ASP

Product code: XAH088N002-0E
Factory code: XAH088N002-0E
Barcode: 4909959183450

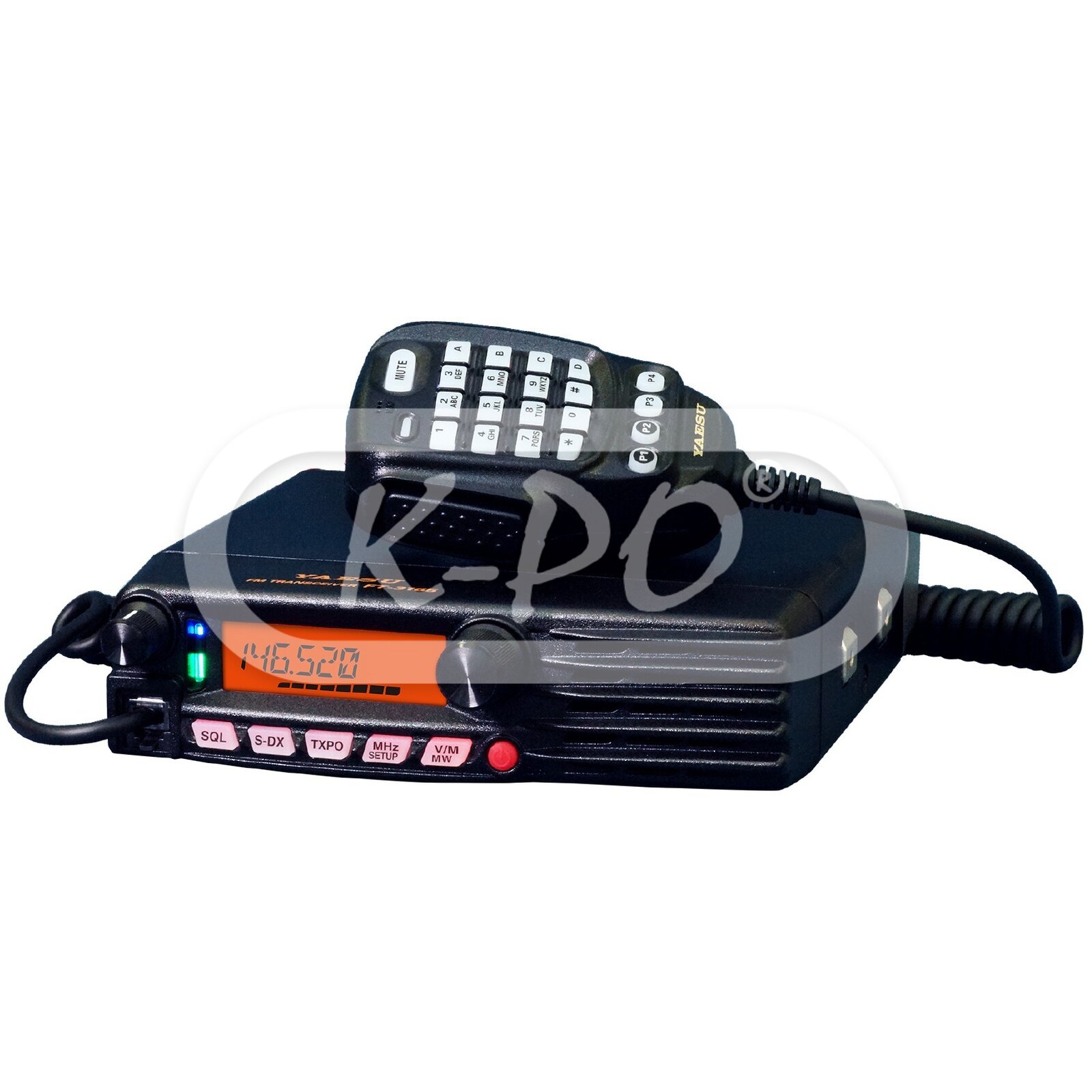

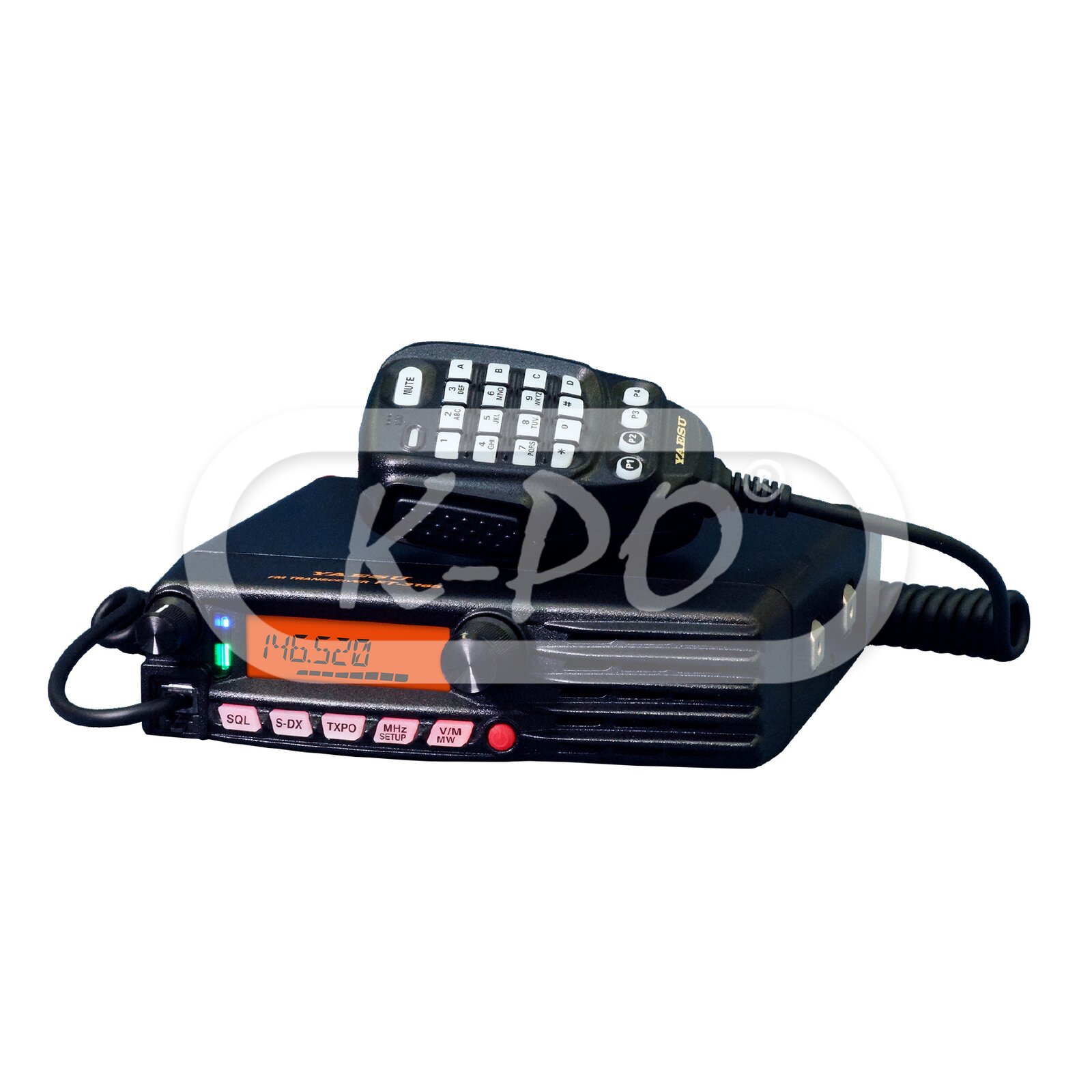

The FT-3165E ASP is a compact 2-meter mobile transceiver with solid basic features configuration and mechanical toughness. The power output is 65W (selectable 65W / 30W / 5W) and its efficient cooling system with the FACC: Funnel Air-Convection Conductor (Wind Tunnel) ensures stable and reliable power.

New front speaker provides 5W of loud audio and has been tuned for improved sound quality. With the optional MLS-100 external speaker, the FT-3165E ASP transceiver supports uninterrupted communication even in a noisy environment.

The Super-DX function increases the receiver sensitivity and improves weak signal reception. The new ASP: Audio Digital Signal Processing Unit is also activated when the Super-DX key is pressed. The Super-DX with the ASP ensures comfortable audio quality of weak signals and expands the communication range.

Some other convenient features of the FT-3165E ASP are: Large-capacity of 220 Memory channels with Alpha-numeric 8-character labels, Keypad entry of operating frequencies from the supplied DTMF microphone, Versatile Scan features such as Preferential Memory Scan, VFO Scan, Priority Channel Scan (Dual Watch), CTCSS / DCS Encode/Decode, Separate Transmit offset Frequency Memories, RF squelch, EPCS (Enhanced Paging & Code Squelch) operation, Display Illumination Adjustment, Automatic Power- Off (APO), Time-Out Timer (TOT), Busy Channel Lock-out (BCLO).

Frequency range: Tx 144 - 146MHz or 144 - 148MHz / Rx 136 - 174MHz
Out of stock - Longer delivery time
€209.95 (173.51 excl. 21% VAT)

Transmitter

  • Power output (Watts): 65W/30W/5W
  • Modulation Type:: Variable Reactance
  • Maximum Deviation:: ±5kHz (Wide) / ±2.5kHz (Narrow)
  • Spurious Radiation:: Better than -60dB / Better than -61.1dB (European version, 65W)
  • Microphone Impedance:: 2k Ohms

Receiver

  • Circuit Type:: Double Conversion Superheterodyne
  • Ifs:: 1st 47.25MHz, 2nd 450kHz
  • Sensitivity (for 12dB SINAD):: 0.20μV (Ham band, wide) / 0.22μV (Ham band, narrow)
  • Selectivity (–6/–60dB):: 12kHz/28kHz
  • Maximum AF Output:: 5W @ 13.8V, 10% THD

Mechanical data

  • Length: 155 mm
  • Height: 43 mm
  • Width: 154 mm
  • Weight: 1300 gram
  • Antenna connector: UHF (PL) female (SO-239)

Inside the box

  • Transceiver: Yes
  • Microphone: Yes
  • Mounting bracket: Yes
  • Mounting parts: Yes
  • DC power cable: Yes
  • USB program cable: Yes
  • Fuse: Yes, Spare fuse (20A)
