Yaesu - FT-5DE Yaesu - FT-5DE Yaesu - FT-5DE Yaesu - FT-5DE

Yaesu - FT-5DE

Cashback Promotion - € 50,00
Product code: XAH082M005-1E
Factory code: XAH082M005-1E
Barcode: 4909959176599

Yaesu Promotion: Free Original Yaesu 2024 Gold/Black Cap. Available to end-users only.

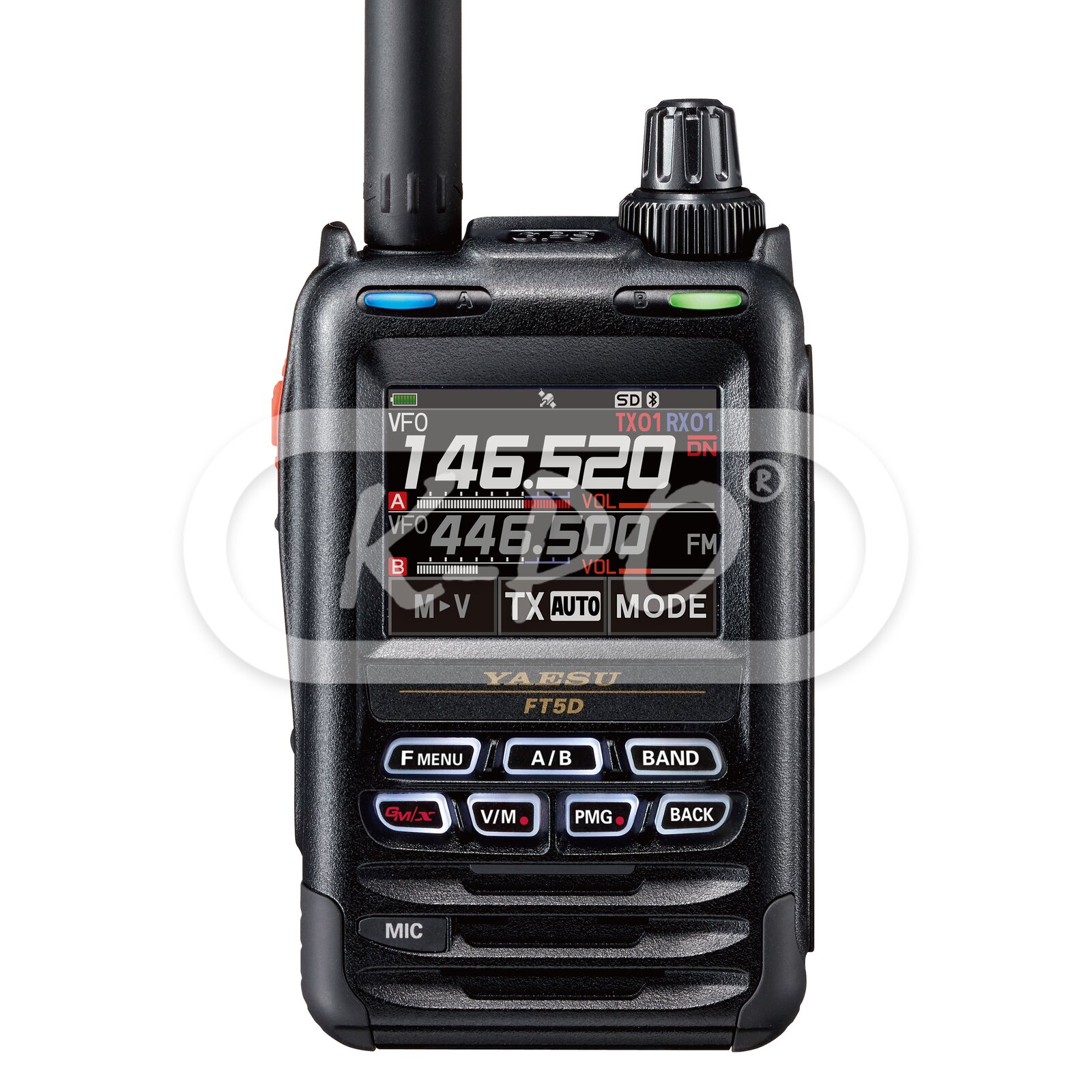

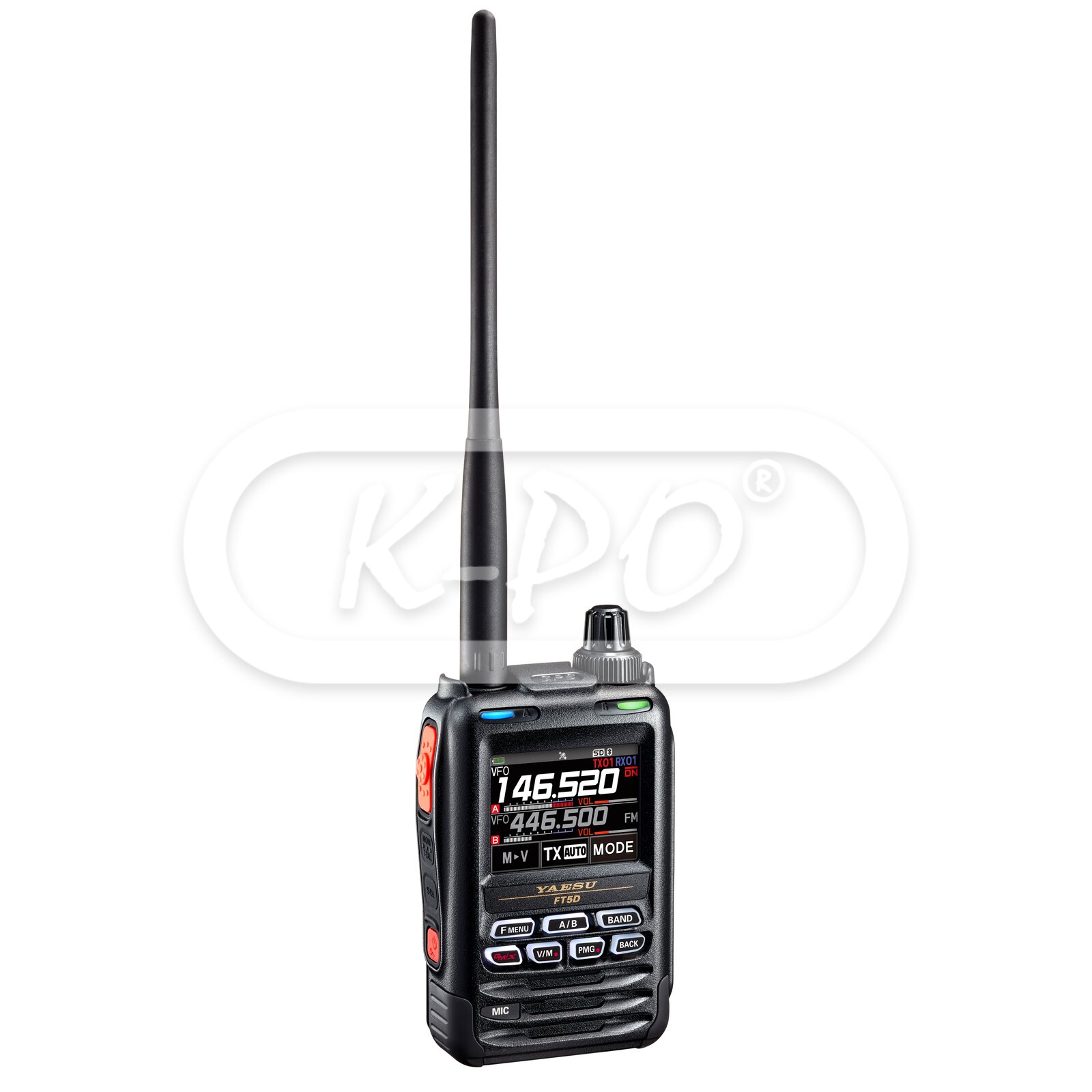

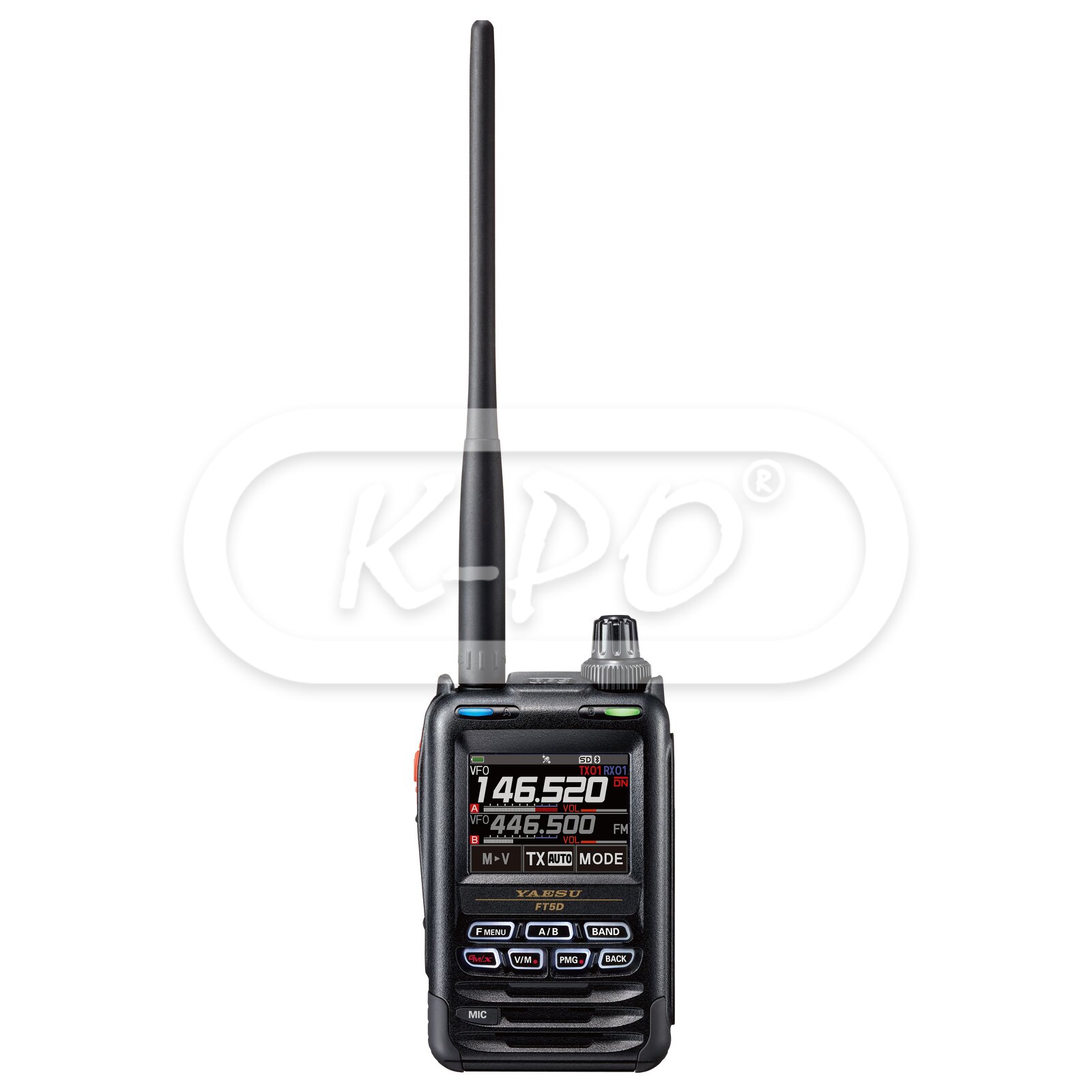

The Yaesu FT-5DE is a full-featured C4FM handheld transceiver with superior operability and new sophisticated functions. Even in a compact body 62 x 101 x 34 mm (W x H x D), the FT-5DE provides reliable 5W RF power output and achieves loud 1W audio power that has been tuned for quality audio. Real Dual Band Operations (V+V, U+U, V+U, U+V) are available with two independent receivers. Large individual LED indicators for A band and B band present the status and communication modes (C4FM or Analog) of each band instantly. The new FT-5DE supports simultaneous C4FM digital (C4FM/C4FM standby).

Rugged construction

With rubber protection on the corner of the main body, the FT-5DE has rugged and shock-resistant construction. The waterproof rating is IPx7. The comfortable size and form of the full-flat back body provides excellent grasp for the radio operator.

High-resolution display

A high-resolution display highlights the frequency of the operational band. The color of the operating band frequency can be selected from white, blue or red. Three (3) touch panel keys and seven (7) operation keys below the display offer intuitive operability.

Touch & Go Operation
The new Touch & Go operation is convenient in order to immediately start the communications on an often-used frequency. By pressing and holding the “PMG” key, the frequency of the current display is registered into Primary Memory Group. After registration, pressing the “PMG” key will display the receive status of the registered frequencies as bars on a graph (activity monitor). By simply touching the displayed bar, the user can instantly recall that frequency.

Band Scope

Band Scope function monitors in real time, up to 79 displayed channels that are centered around the current VFO frequency. The center frequency can be tuned by the dial knob or by touching and moving the frequency of a displayed channel bar.

C4FM Digital Clear Voice

The C4FM digital communication features which are already popular in the market, such as: Automatic Mode Select (AMS), Digital Group ID (DG-ID) operation, and Smart Navigation function are available with the new FT-5DE.

WiRES-X

The FT-5DE supports the WiRES-X Portable Digital Node Function as well. A portable digital node can be easily set up with the new FT-5DE, an internet connected laptop PC, and the optional SCU-39 cable kit.

Quick Release Holster

The New Quick Release Holster (SHB-26) is included in the FT-5DE package as a supplied accessory that allows single-touch attaching and detaching the transceiver while wearing the holster on a belt.

Frequency range: TX: 144-146 / 430-440 MHz, RX: 0.5-999 MHz
Shipped next business day
€449.95 (371.86 excl. 21% VAT)

Features

  • Display: Yes, LCD display
  • VOX function: Yes
  • DTMF: Yes
  • Battery capacity: Li-ion 2200 mAh (7.2V)
  • Accessory connector: 1-pin Yeasu connector (Y)
  • Mode of emission: F1D / F2D / F3E / F7W
  • Bluetooth: Version: 4.2 / Class: 2
  • Waterproof index: IPx7
  • MIC gain: Yes, 9 levels
  • VOX function: Yes
  • Recording function: Yes, the received audio of other stations, or the transmit audio can be recorded, and the voice data saved as an audio file on the microSD card (not included)
  • VFO Band skip function: Yes
  • Memory Auto Grouping (MAG): Yes, the memory auto grouping (MAG) function allows memory channels to be automatically categorized
  • Wide band reception: Yes, wide range receive coverage from 0.5-999.99 MHz (A-Band) / 108-580 MHz (B-Band)
  • Band scope: Yes
  • GPS: Yes, integrated 66 channel GPS receiver
  • AF Dual simultaneous AM/FM function: Yes
  • Data communication: Yes, 1200/9600bps APR data communication
  • Snapshot feature: Yes, the captured images are displayed with full color, and can be sent to other C4FM digital transceivers
  • MicroSD card slot: Yes, the radio accepts microSD cards up to 32 GB for storage of GPS logger data, Voice data, Memory back-up, and other useful information

Electrical data

  • Frequency step: 5 kHz / 6.25 kHz / 8.33 kHz / 9 kHz / 10 kHz / 12.5 kHz / 15 kHz / 20 kHz / 25 kHz / 50 kHz / 100 kHz /
  • Channels: 900 Memory channels / 99 Skip search memory channels / 11 Home channels / 50 Pairs PMS memory channels / 57 VHF marine radio channels / 89 World wide broadcasts channels
  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: -20℃ to +60℃
  • Frequency stability: ±2.5 PPM
  • Supply voltage (Nominal): Negative Ground, SBR-14LI: 7.2V DC / Negative Ground, FNB-101LI: 7.4V DC / Negative Ground, EXT DC Jack: 10.5-16V DC
  • Supply voltage (Operating): Negative Ground, Li-ion Battery: 5.5-8.4V DC / Negative Ground, EXT DC Jack: 4-16V DC / Negative Ground, EXT DC for Charging: 10.5-16V DC / Negative Ground, FBA-39: 3.6-4.5V DC
  • Current consumption: Mono band Receive: 180 mA / Dual band Receive: 220 mA / Mono band Receive, Standby: 110 mA / Dual band Receive, Standby: 145 mA / Mono band Receive, Standby, Saver on ‘Save Ratio 1:10: 74 mA / Dual band Receive, Standby, Saver on ‘Save Ratio 1:10: 74 mA / GPS on: +15 mA / Digital on: +3 Ma / AM,FM Radio: 125 mA / Auto Power Off: 600 μA / 144 MHz, 5 Watt, 7.4V: 1.6 A / 430 MHz, 5 Watt, 7.4V: 1.9 A

Transmitter

  • Power output (Watts): Li-ion battery - 13.8 Volt: 0.3/1.0/2.5/5.0 Watts / FBA-39: 0.3/0.9 Watts
  • Spurious Emission: TX power Low 1, Low 2: ≤ 50 dB / TX power Low 3, HI: ≤ 60 dB
  • Modulation type: F1D / F2D / F3E: Variable Reactance Modulation / F7W: 4FSK (C4FM)
  • Antenna impedance: 50 Ω

Receiver

  • Sensitivity 0.52-30 MHz: 3 μV typ for 10 dB SINAD (AM) / A-Band only
  • Sensitivity 30-54 MHz: 0.35 μV typ for 12 dB SINAD (NFM) / A-Band only
  • Sensitivity 54-76 MHz: 1 μV typ for 12 dB SINAD (NFM) / A-Band only
  • Sensitivity 76-108 MHz: 1.5 μV typ for 12 dB SINAD (WFM) / A-Band only
  • Sensitivity 108-137 MHz: 1.5 μV typ for 10 dB SINAD (AM)
  • Sensitivity 137-140 MHz: 0.2 μV typ for 12 dB SINAD (NFM)
  • Sensitivity 140-150 MHz: 0.16 μV typ for 12 dB SINAD (NFM)
  • Sensitivity 150-174 MHz: 0.2 μV typ for 12 dB SINAD (NFM)
  • Sensitivity 174-222 MHz: 1.0 μV typ for 12 dB SINAD (NFM)
  • Sensitivity 222-225 MHz: 0.5 μV typ for 12 dB SINAD (NFM)
  • Sensitivity 300-350 MHz: 0.5 μV typ for 12 dB SINAD (NFM)
  • Sensitivity 350-400 MHz: 0.2 μV typ for 12 dB SINAD (NFM)
  • Sensitivity 400-470 MHz: 0.18 μV typ for 12 dB SINAD (NFM)
  • Sensitivity 470-580 MHz: 1.5 μV typ for 12 dB SINAD (NFM)
  • Sensitivity 580-800 MHz: 3.0 μV typ for 12 dB SINAD (NFM) / A-Band only
  • Sensitivity 800-999 MHz: 1.5 μV typ for 12 dB SINAD (NFM) / A-Band only
  • Digital Mode: 0.19 μV typ for BER 1%
  • Intermediate frequency 1st: A-Band: 58.05 MHz / B-Band: 57.15 MHz
  • Intermediate frequency 2nd: A-Band: 450 kHz / B-Band: 450 kHz
  • Receiving system AM, NFM: Dual conversion superheterodyne
  • Receiving system AM, FM radio: Direct conversion
  • Audio power output (Internal speaker): 1000 mW (8 Ω, THD10%, 7.4 V)
  • Audio power output (External speaker): 500 mW (8 Ω, THD10%, 7.4 V)
  • Selectivity (-6 dB/-60 dB): NFM / AM: 12 kHz / 35 kHz

Mechanical data

  • Length: 34 mm
  • Height: 100 mm
  • Width: 62 mm
  • Weight: 282 gram
  • Antenna connector: SMA
  • Housing: Rugged construction with full fledged robust construction that protects the front and LCD with silicone rubber, and rubber protection on the bottom and sides of the main body

Inside the box

  • Transceiver: Yes
  • Battery: Yes, SBR-14LI Li-ion Battery Pack (7.2V 2200mAh)
  • Charger: Yes, Battery charger SAD-25C
  • Antenna: Yes
  • Installation manual: English
  • Quick release holster: Yes, SHB-26BK
  • Belt clip: Yes, SHB-13
  • USB cable: Yes
