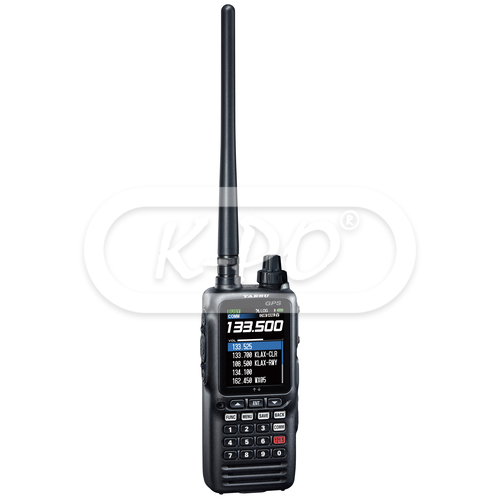

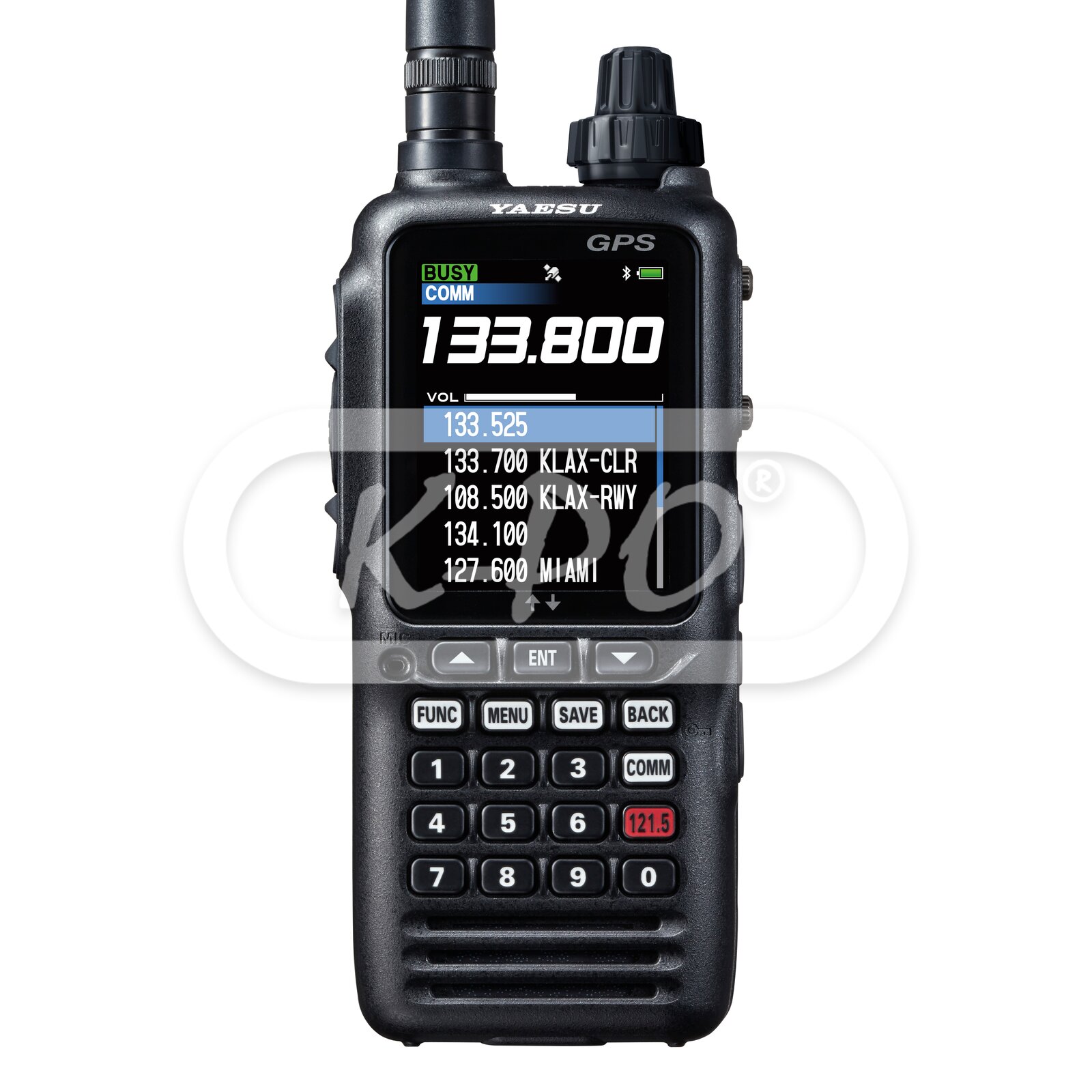

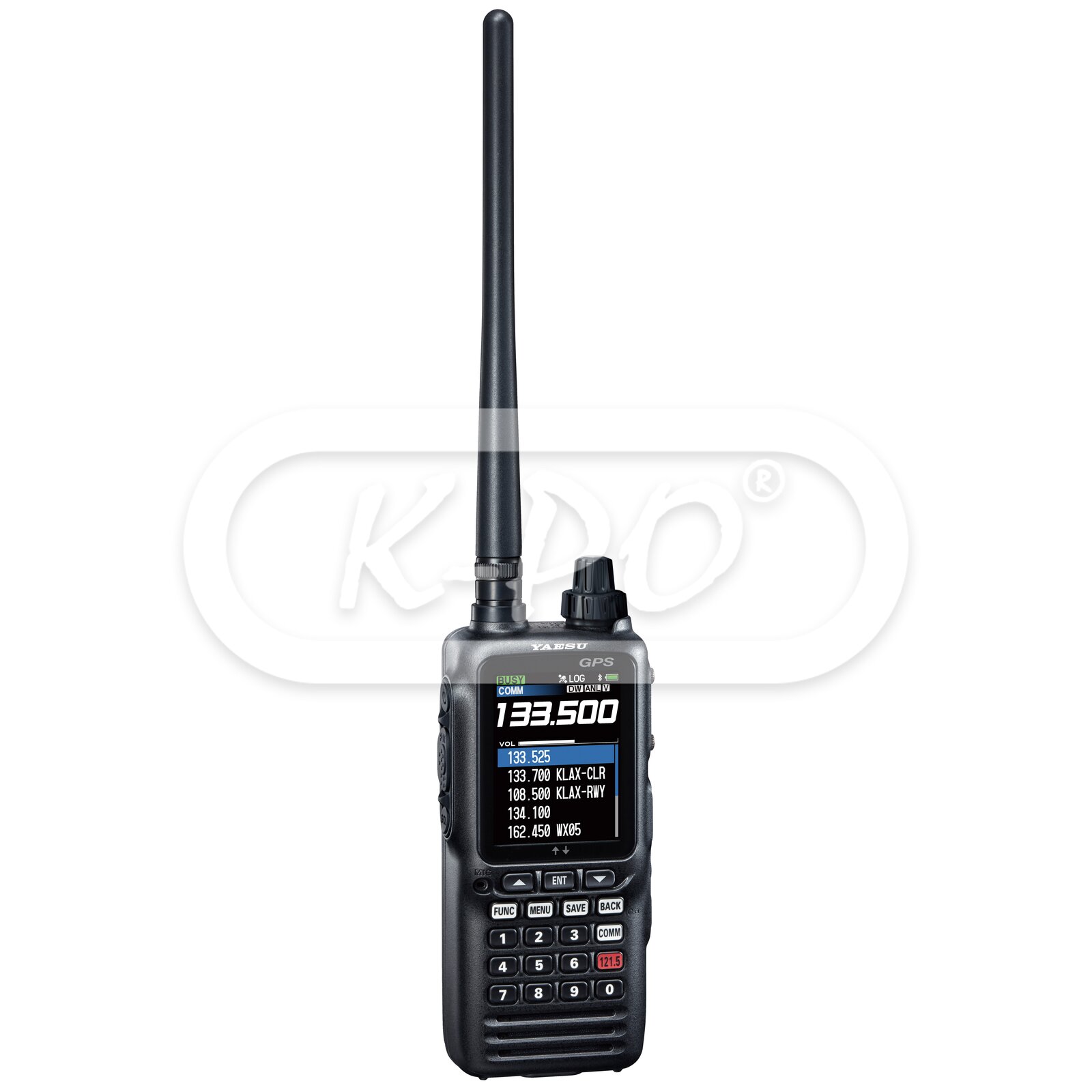

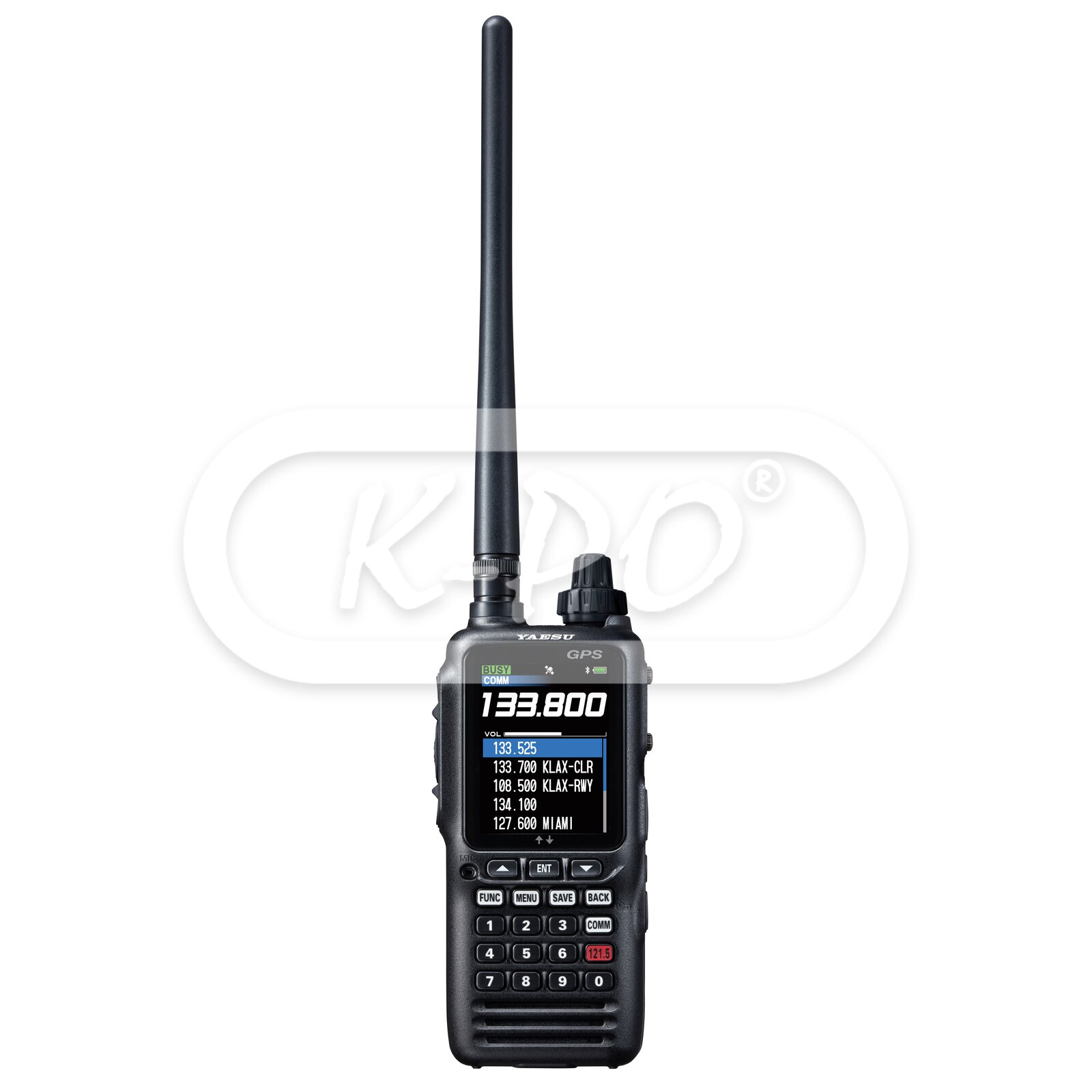

Yaesu - FTA-850L Yaesu - FTA-850L Yaesu - FTA-850L

Yaesu - FTA-850L

Product code: XAA003N002-1E
Factory code: XAA003N002-1E
Barcode: 4909959173819

The Yaesu FTA-850L is a portable airband transceiver, precisely engineered to meet the requirements of top aviators. Boasting top tier features like a 2.4 inch full-color TFT display, enhanced navigtion features using ILS, VOR, or GPS, and a 400 channel memory bank. Forget the wires, featuring a Built-in bluetooth module allowing operation with a commercially available bluetooth headset, or use with Yaesu's optional SSM-BT20 headset. Built around an ultra-durable polycarbonate housing, the FTA-850L meets the IPx5 waterproof rating, and the stringent MIL-STD-810H standards. Packaged with a high capacity 2200mAh Lithium-Ion battery, Headset adapter, 100-240VAC charger, 12VDC charger/Power cable, drop in charging cradle, backup Alkaline battery tray, and heavy duty belt clip. All backed by an industry leading 3 year waterproof warranty.

ILS Navigation (Localizer and Glide Slope)

When the FTA-850L receives an ILS signal, the display will automatically switch to the NAV band screen which shows a CDI (Course Deviation Indicator) based on the received localizer signal or the glide slope signal. Course and height deviation are clearly presented on the color CDI display, and aid with the landing approach under bad weather conditions.

VOR Navigation

When the FTA-850L receives a VOR signal, the display automatically switches to the NAV band screen and shows the CDI. The top of the compass rose always indicates the direction set as the OBS. The SOG (Speed Over Ground) is displayed only when the FTA-850L internal GPS unit is activated and a fix is acquired.

Flight-Route Display and Navigation

The Flight Route Navigation feature clearly presents the traveling route, listing the waypoints from the departure point to the final destination, including the current position where Navigation is being performed. Route, Location and travel status can be assessed at a glance. Navigation is also displayed on an easy-to-read color compass screen.

Dual Frequency Display

DD (Dual Frequency Display) screen presents two frequencies separately on the top and bottom of the screen. The most recently tuned information (Comm Frequency, Memory group and Weather channel) are always set into the active channel automatically. the target mode and channel can easily be switched between different modes using the DD screen, without going through the MEN.

Frequency range: TX: 118.000-136.9916, RX: 108.000-136.9916 MHz (NAV and COM bands) / 329.150-335.000 (Glide slope)
Out of stock - Longer delivery time
Available from - 30-01-2025
€419.95 (347.07 excl. 21% VAT)

Features

  • Display: Oversized 2.4 inch & TFT Color Display (240x320 pixel)
  • Bluetooth: Version: 4.2 / Class: 2
  • Bluetooth output power: 2 dBm
  • Battery capacity: Li-ion 2200 mAh (7.2V)
  • Accessory connector: 1-pin Yeasu connector (Y)
  • ILS Navigation Display (Localizer and Glide Scope): Yes, when the FTA-850L receives an ILS signal the display will automatically switch to the NAV band screen
  • VOR Navigation Display: Yes, when the FTA-850L receives an VOR signal the display will automatically switch to the NAV band screen
  • Flight-Route Display and Navigation: Yes,The flight route navigation feature clearly presents the traveling route and listing the waypoints
  • Waypoint Navigation: Yes
  • NOAA Weather channel receive: Yes
  • NOAA Weather Alert: Yes
  • Dual frequency display: Yes
  • Noise canceling function: Yes for both transmit and receive audio
  • Waterproof index: IPx5
  • GPS function: Yes, integrated 66 channel WAAS GPS receiver
  • Vox function: Yes, 5 Levels
  • Scan function: Yes
  • Dual Watch function: Yes

Electrical data

  • Frequency step: 8.33 kHz / 25 kHz /
  • Channels: 400 channels with 14 character alphanumeric tags
  • Operating temperature: -10℃ to +60℃
  • Supply voltage: 6.0 to 9.5 Volt
  • Current consumption: Power off: 300 μA / Battery save on: 125 mA / Squelch on: 160 mA / Receive: 300 mA / Transmit 1.8 Watt: 1.1 A

Transmitter

  • Power output (Watts): Carrier Power: 1.8 Watt / PEP: 6.0 Watt
  • Spurious Emission: >70 dB below carrier
  • Frequency stability: Better than ±1 ppm (-10℃ to +60℃)
  • Modulation system: Low Level Amplitude Modulation
  • Internal microphone type: Condensor
  • External microphone impedance: 150 Ω

Receiver

  • Sensitivity: Better than 0.8 μV (for 6 dB S/N with 1 kHz, 30 % modulation)
  • Audio power output: 0.8 W (16 Ω, THD10%)
  • Receiving system: Dual conversion superheterodyne
  • Intermediate frequency: VHF: 47.25 MHz / UHF: 46.35 MHz, 450 kHz
  • Selectivity: >8 kHz/–6 dB @ 25 kHz channel spacing
  • Adjacent channel selectivity: <25 kHz/–60 dB @ 25 kHz channel spacing

GPS unit

  • Receiver channels: 66 Channels
  • Sensitivity: ≤ –147 dBm
  • Time to first fix: Cold start: 1 minute typical / Hot start: 5 seconds typical
  • Geodetic Datum: WGS84

Mechanical data

  • Length: 34 mm
  • Height: 132 mm
  • Width: 60 mm
  • Weight: 395 gram
  • Antenna connector: BNC
  • Housing: Rugged construction certified to MIL-STD-810H

Inside the box

  • Transceiver: Yes
  • Battery: Yes, SBR-39LI Li-ion Battery Pack (7.2V 2200mAh)
  • Charger: Desk charger with AC adapter (SBH-11 - SAD-25C)
  • Installation manual: English
  • Antenna: Yes, SRA-20A Helical antenna
  • Cigarette lighter DC/DC converter: Yes, SDD-12
  • Beltclip: Yes, SHB-11
  • Headset adapter: Yes, SCU-42
  • Alkaline battery tray: Yes, SBT-12
  • USB programming cable: Yes, T9101648 (micro USB / USB-A)
  • Ferrite Core: Yes, L9190192
