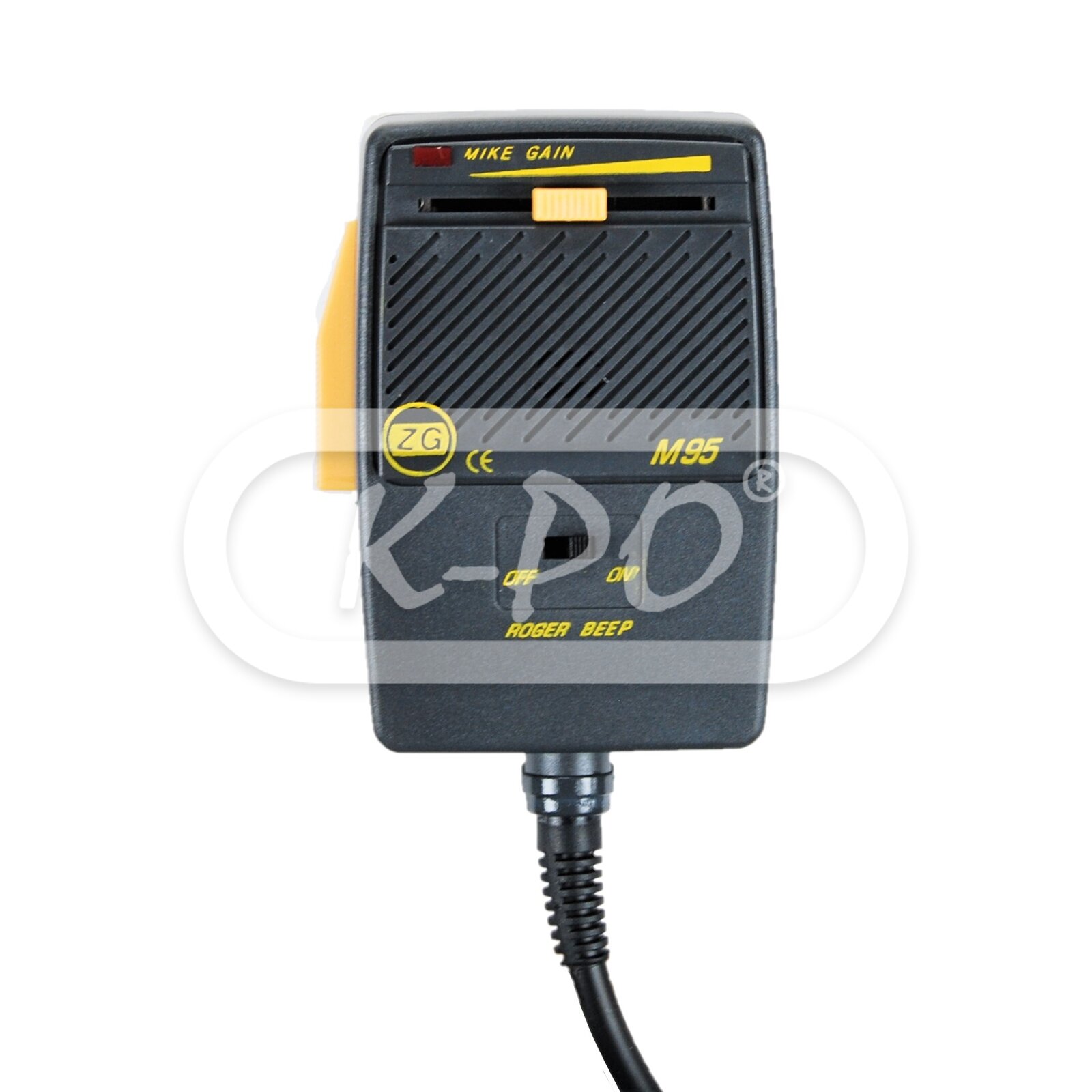

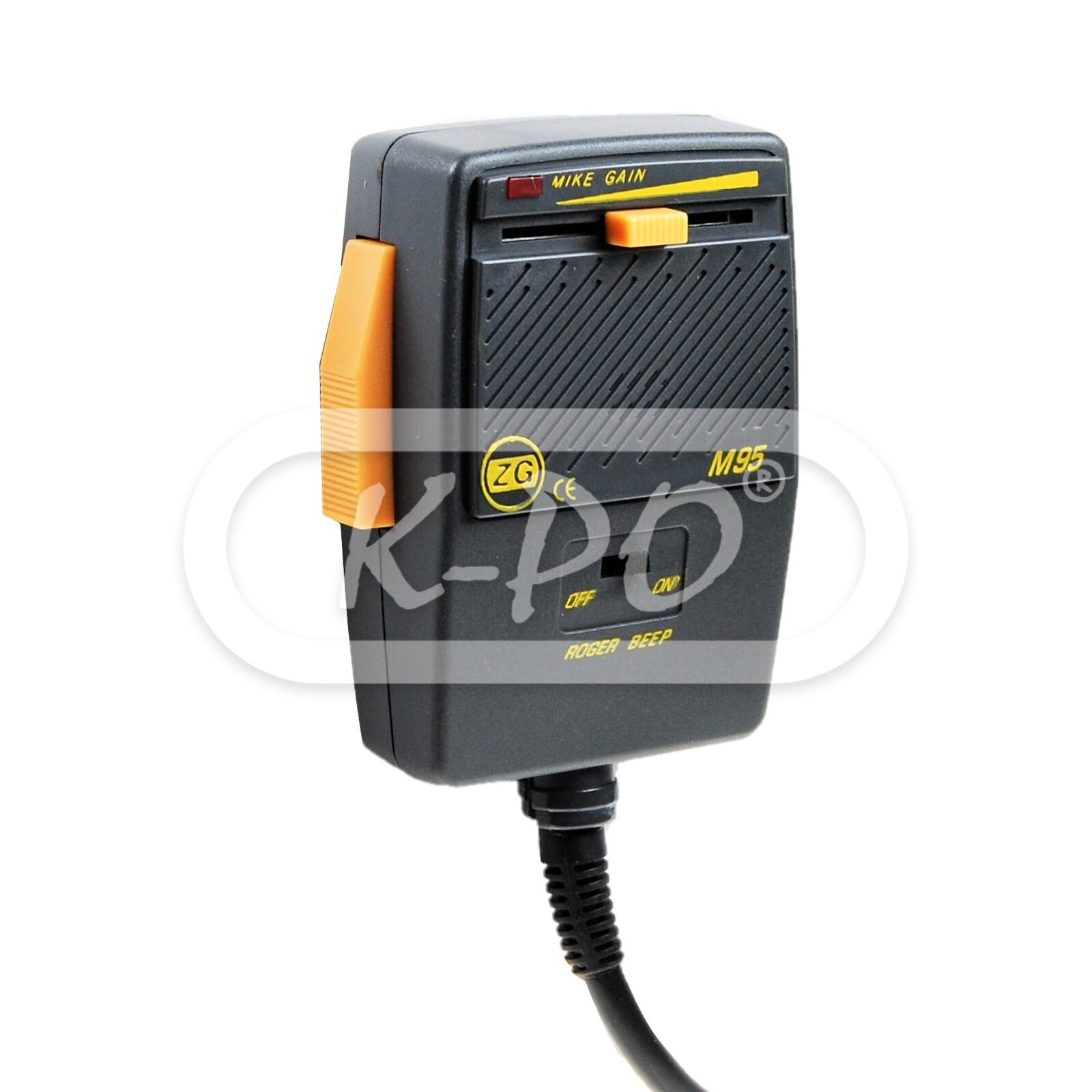

Zetagi - M-95 E4

Product code: 910037

Microphone with integral pre-amplifier and special circuit providing a particulary penetrating and clear modulation.
The modulation level adjustment is located on the front. ON-OFF 'ROGER BEEP' switch which is bitonal and pleasant to the ear. This microphone is powered by a 9 Volt standard battery 6LR61 (battery not included). The microphone is supplied with a flexible spiral lead and 4-pole connector with standard wiring.

Always check carefully if your transceiver is compatible.

Note - Discontinued

€ -- (Discontinued)

Features

• Suitable for: 4-pin E4 connector / Midland Alan 48 / Midland Alan 68 / Midland Alan 68 S / Midland 8001 S / Midland 8001 XT / Midland Alan Quarantotto / Midland Alan Sessantotto /
• Mike gain: Yes
• Roger Beep: Yes
• Microphone type: Power microphone

Mechanical data

• Cable Length: 2.2 m

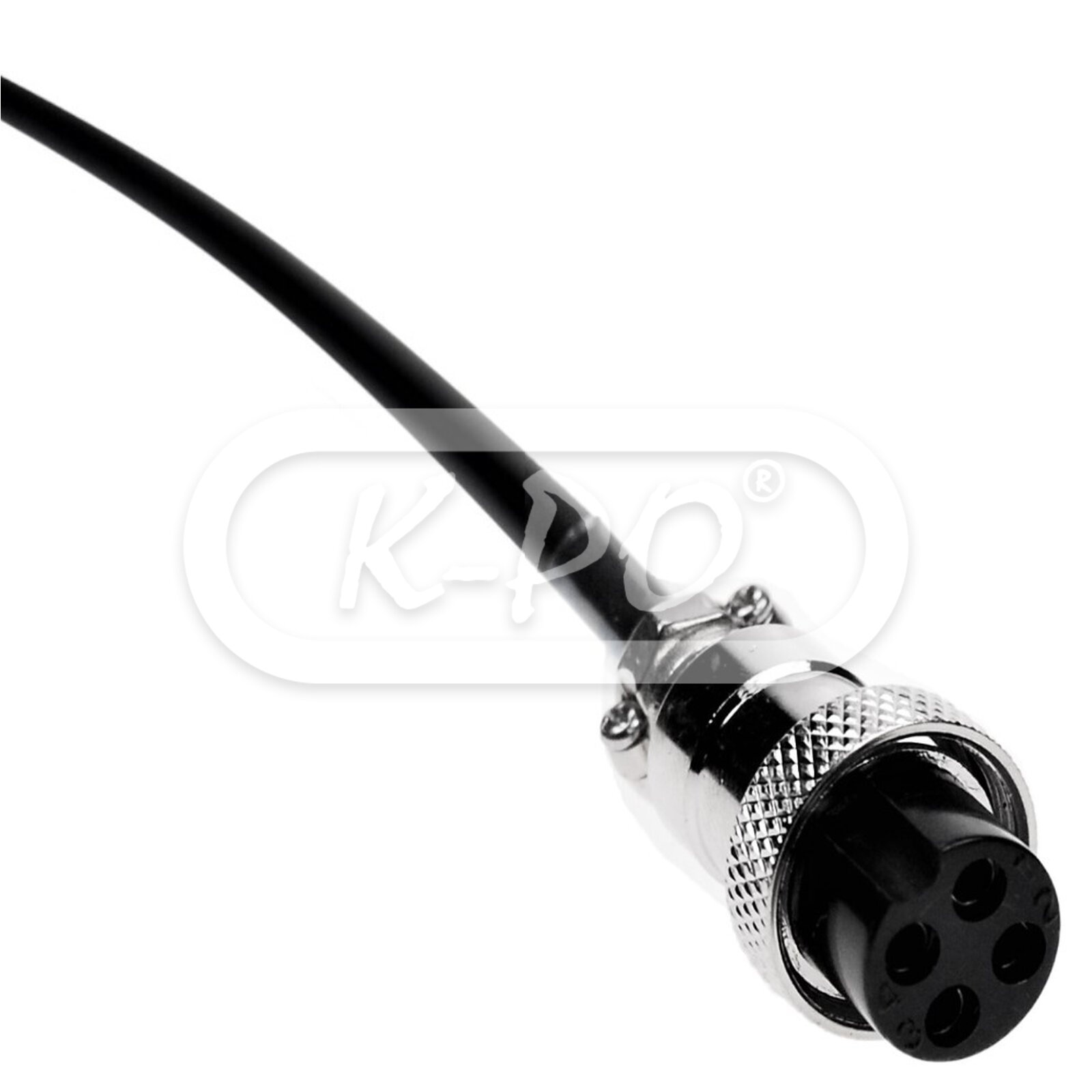

• Microphone connector: 4-pin
• Length: 90 mm
• Height: 35 mm
• Width: 70 mm
• Weight: 135 gram

Microphone wiring

• Receive: Pin 3
• Transmit: Pin 4
• Mic Audio: Pin 1
• Ground: Pin 2
